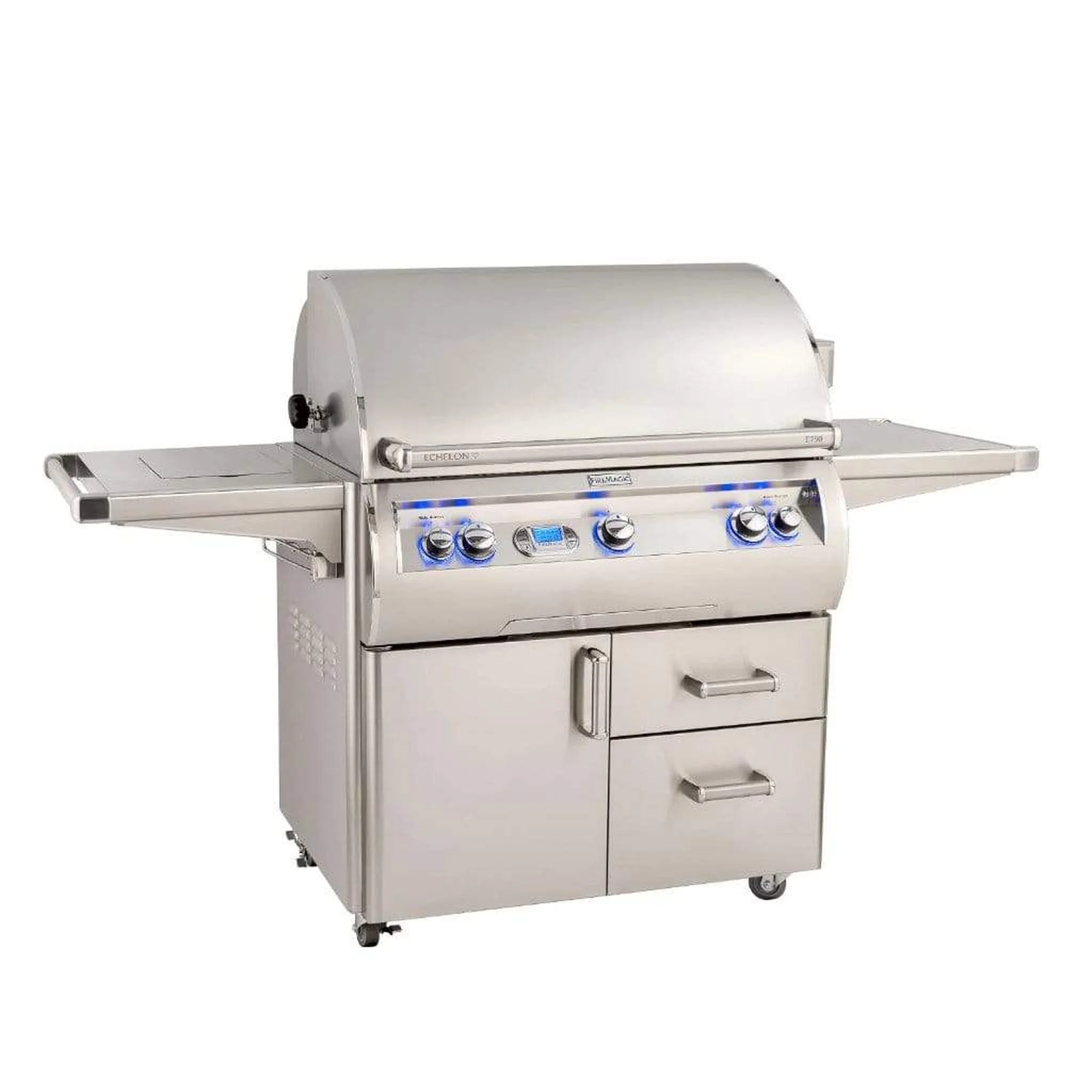

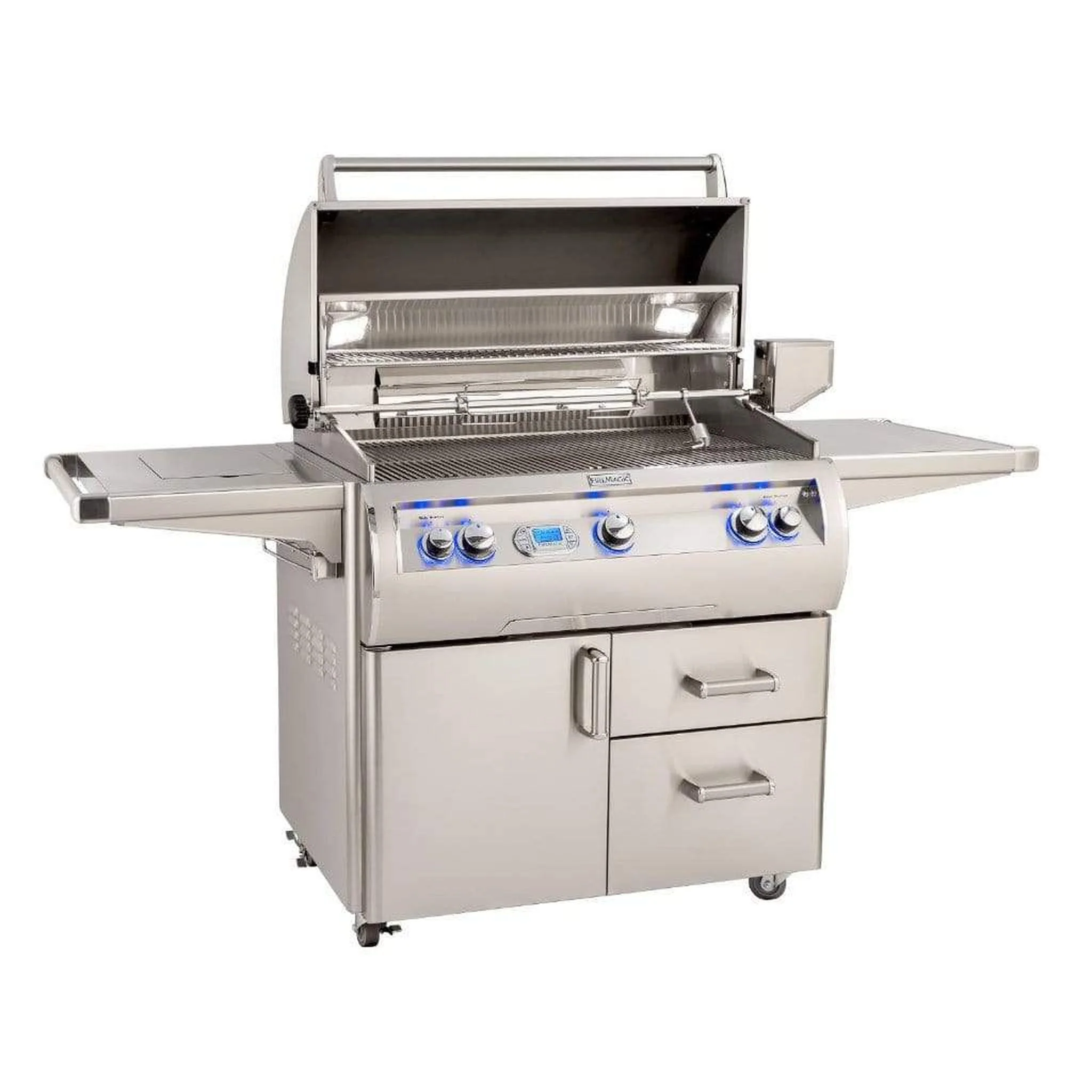

Fire Magic 36" 3-Burner Echelon Diamond E790S Gas Grill w/ Single Side Burner, Rotisserie & Digital Thermometer
The Fire Magic Difference
When you invest in a Fire Magic grill, you’re getting the pinnacle of outdoor cooking performance, backed by one of the best warranties in the industry. Built for durability, precision, and longevity, Fire Magic grills are engineered to deliver exceptional cooking experiences for a lifetime.- Crafted in the USA – Manufactured with premium materials and craftsmanship.
- Built to Last – Constructed from heavy-gauge, appliance-grade stainless steel.
- Unmatched Performance – Designed for superior heat retention and cooking versatility.
Echelon Diamond E790S – Luxury in Outdoor Grilling
The Fire Magic Echelon Diamond E790S is the ultimate grilling machine, combining high-end features with powerful performance. Its sleek, contoured design, advanced cooking systems, and innovative technology make it a top-tier choice for grilling enthusiasts.Key Features
Diamond Sear Cooking Grids
- Patented flat-top bar design ensures even heat distribution.
- Each bar measures over 0.35” wide for optimal heat transfer.
- Made from 304 stainless steel with a matte, non-stick surface.
Cast Stainless Steel Burners
- 1/4" thick cast stainless steel burners for superior durability.
- Each burner produces up to 31,000 BTUs.
- Lifetime warranty on burners.
Angled Halogen Internal Lights
- Two internal 12V halogen lights (E1060 model includes three).
- Lights are angled for better nighttime visibility.
- Easy-to-remove lens for simple maintenance.
90-Degree Double-Walled Hood
- 304 stainless steel double-wall construction for superior heat retention.
- Opens at 90 degrees for easy access and efficient venting.
- Teflon-coated spring assist ensures smooth opening.
Charcoal Smoker Basket
- Stainless steel basket for charcoal or wood chips to enhance flavor.
- Expanded metal grid provides optimal airflow.
- Bottom ash catch for easy cleanup.
- 14-gauge stainless steel smoker cover included.
Recessed Infrared Backburner
- High-efficiency ceramic system encased in stainless steel mesh.
- Produces intense, even heat for rotisserie cooking.
- Comes with a stainless steel cover for protection.
Hot Surface Ignition System
- Push-button ignition for reliable startup.
- 110V electric ignition ensures easy lighting every time.
Additional Features
- Available in 30", 36", and 48" models.

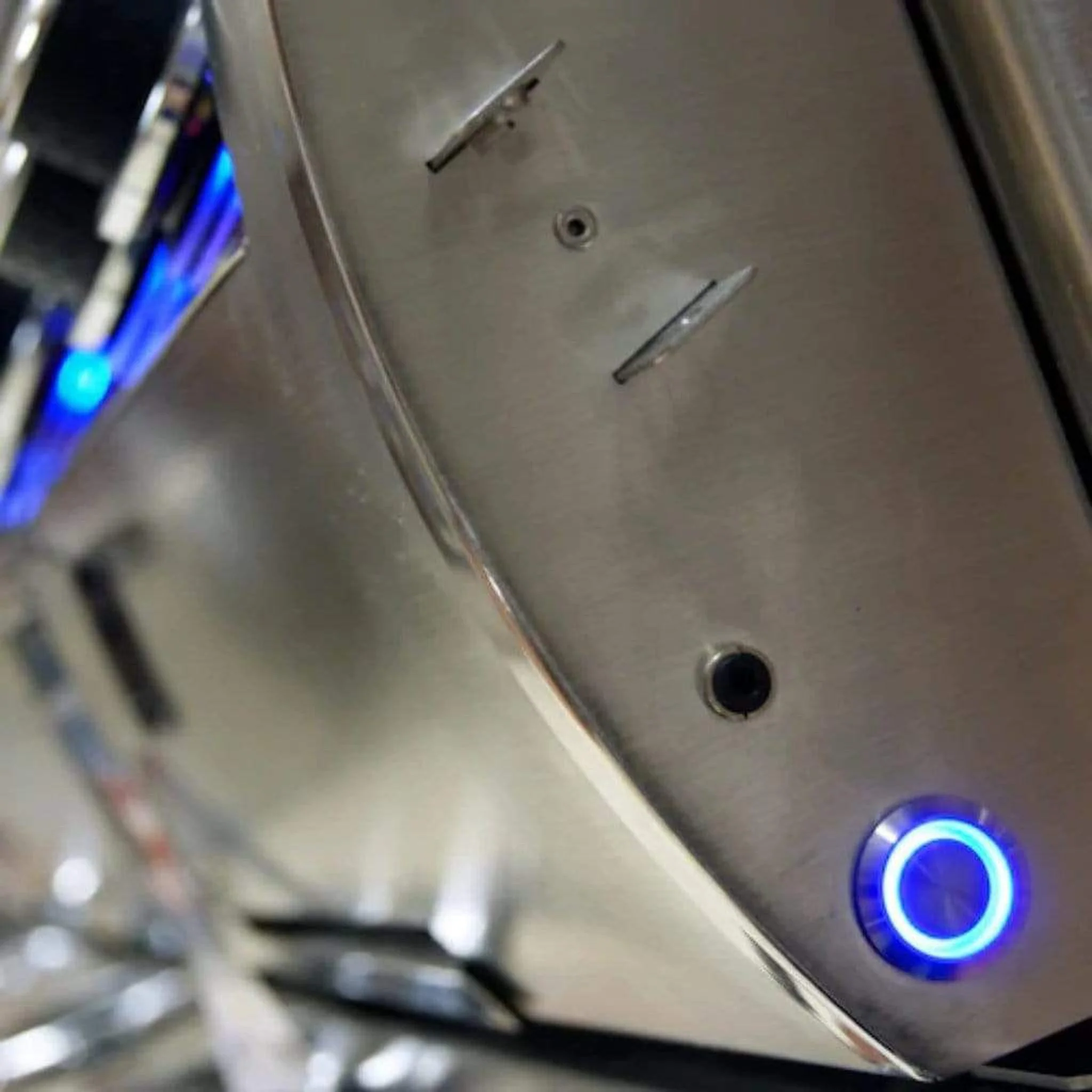

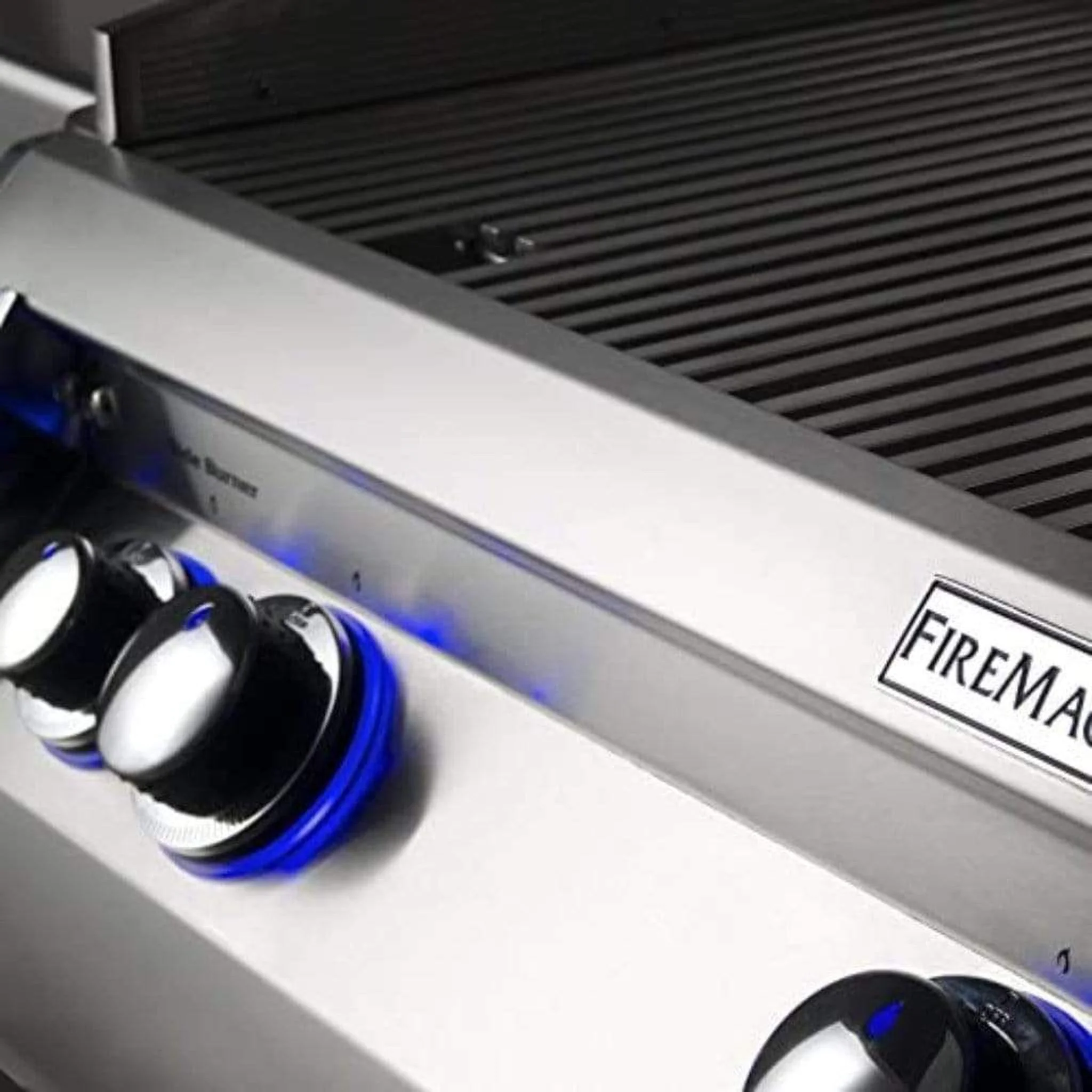

- LED backlit comfort-touch knobs for precise control.
- Master power switch for enhanced safety.
- Larger drip tray with ball-bearing glides for effortless maintenance.
- Pre-assembled on a durable stainless steel cart.

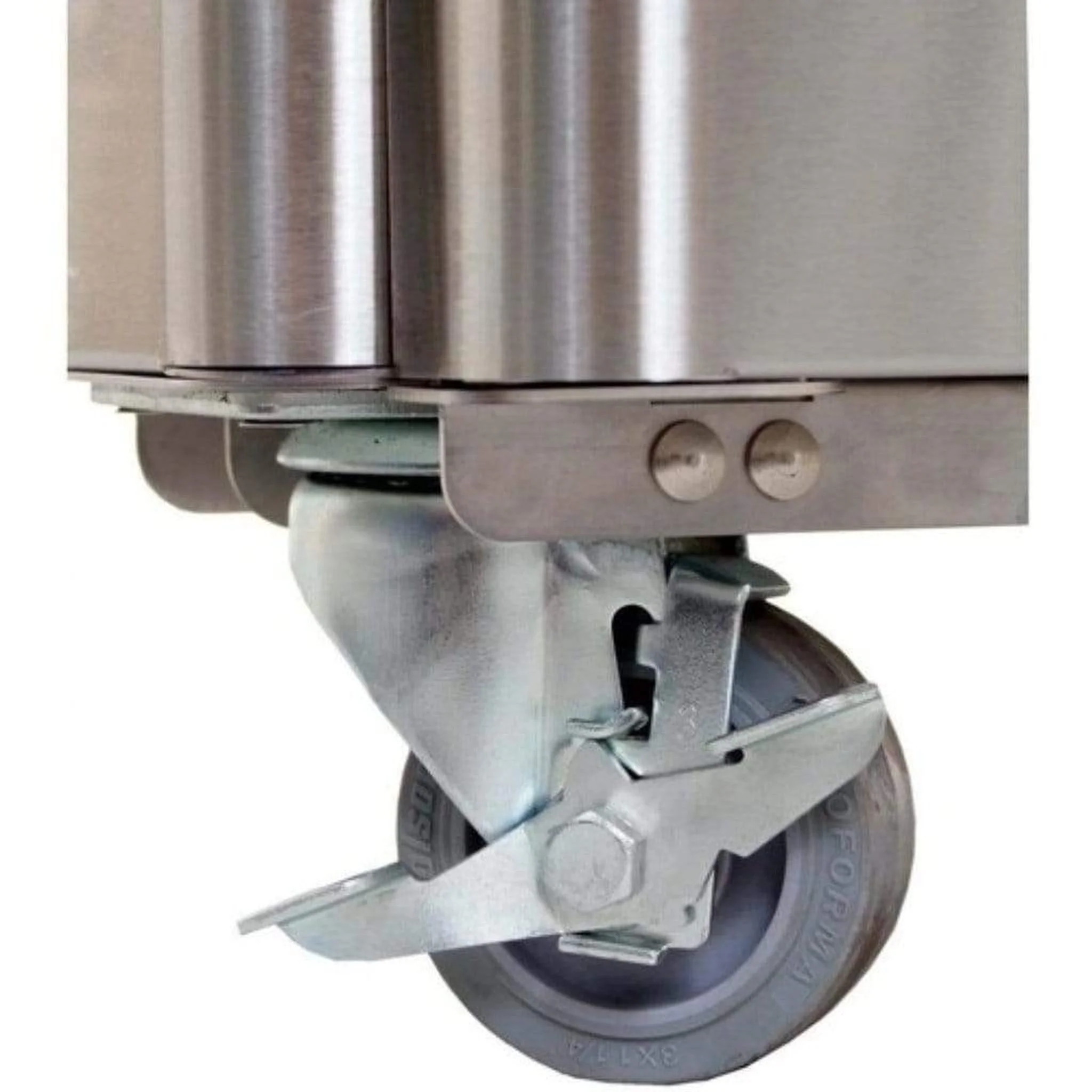

- Four locking casters for mobility.
- Insulated storage doors and dual drawers.
- Two fold-down solid shelves with towel bars.

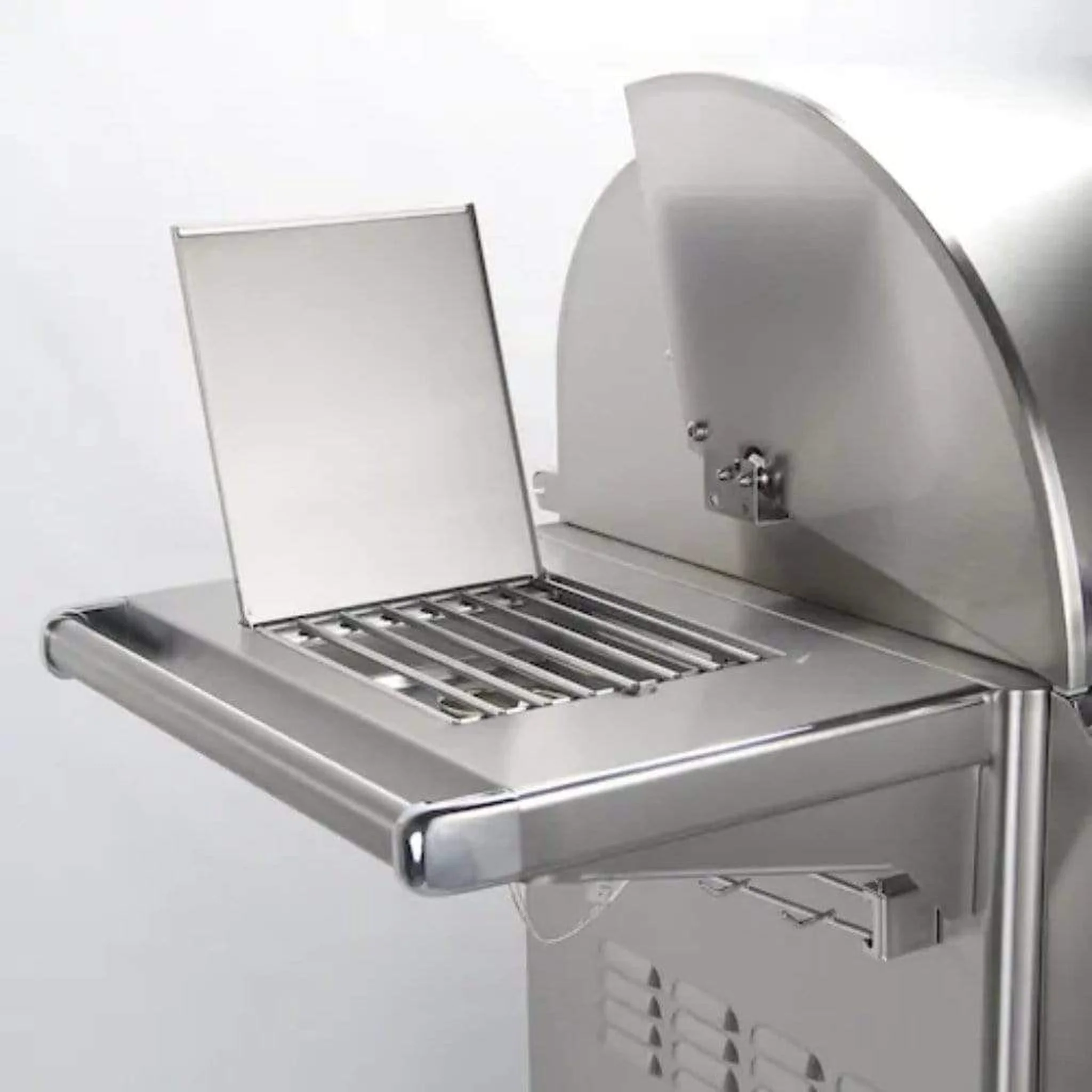

- Flush-mounted side burner for additional cooking options.

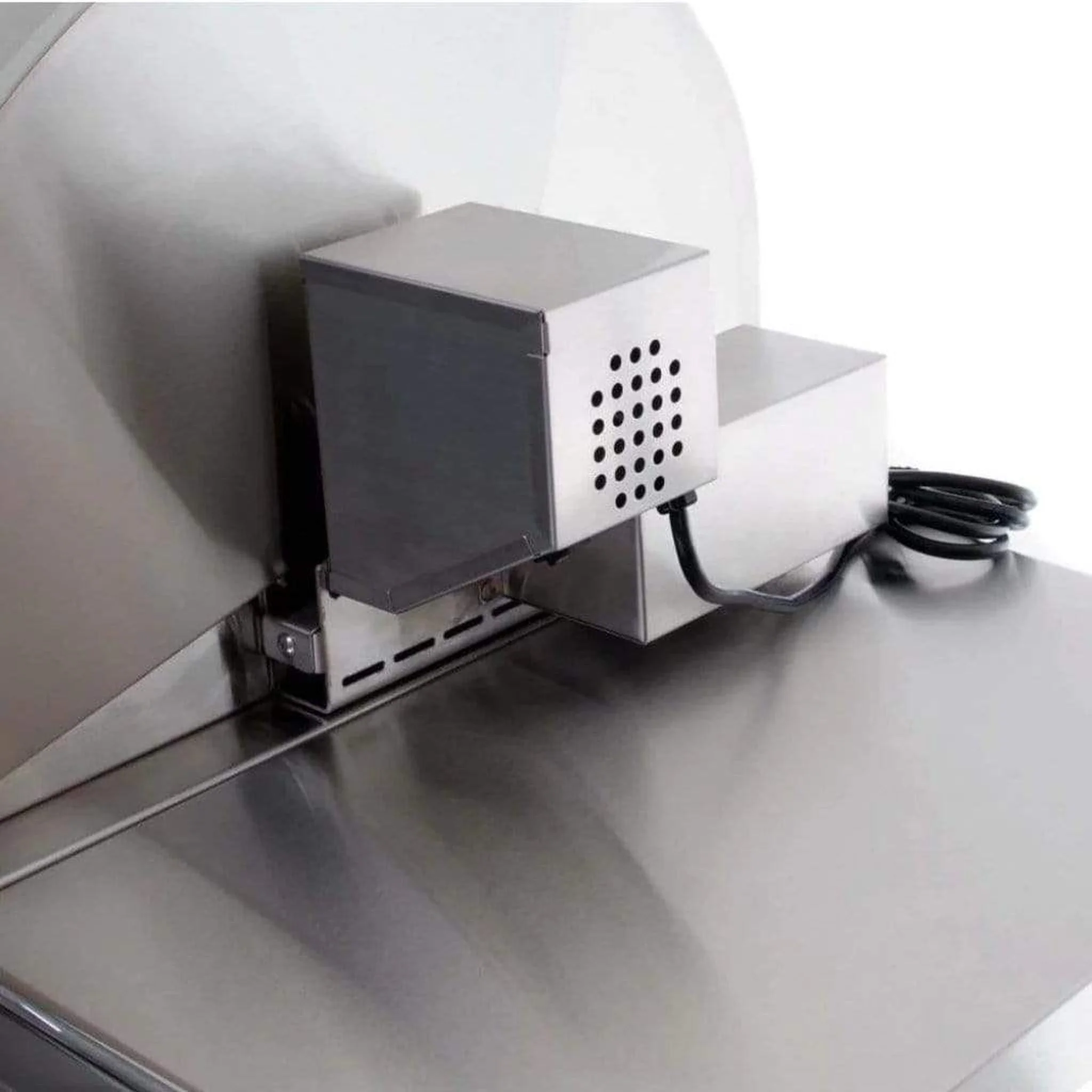

- Rotisserie kit included.
Specifications
- Model Number: E790S (-62)
- Number of Burners: 3 Cast Stainless Steel "E" Burners
- Primary Cooking Area: 36″ x 22″ (792 sq. in.)
- Warming Rack: 36″ x 8″ (384 sq. in.)
- Total Grilling BTU Output: 96,000 BTUs
- Rotisserie Burner BTU: 13,000 BTUs
- Side Burner BTU: 15,000 BTUs
- Dimensions: 73.75" (W) x 29.75" (D) x 60.5" (H)
- Exterior Material: 304 Stainless Steel
- Cooking Grate: Stainless Steel
- Ignition Type: 120V/12V Hot Surface Ignition
- Weight: 425 lbs.
- Thermometer: Digital
Optional Upgrades
- Magic View Window – Monitor your food without lifting the hood.

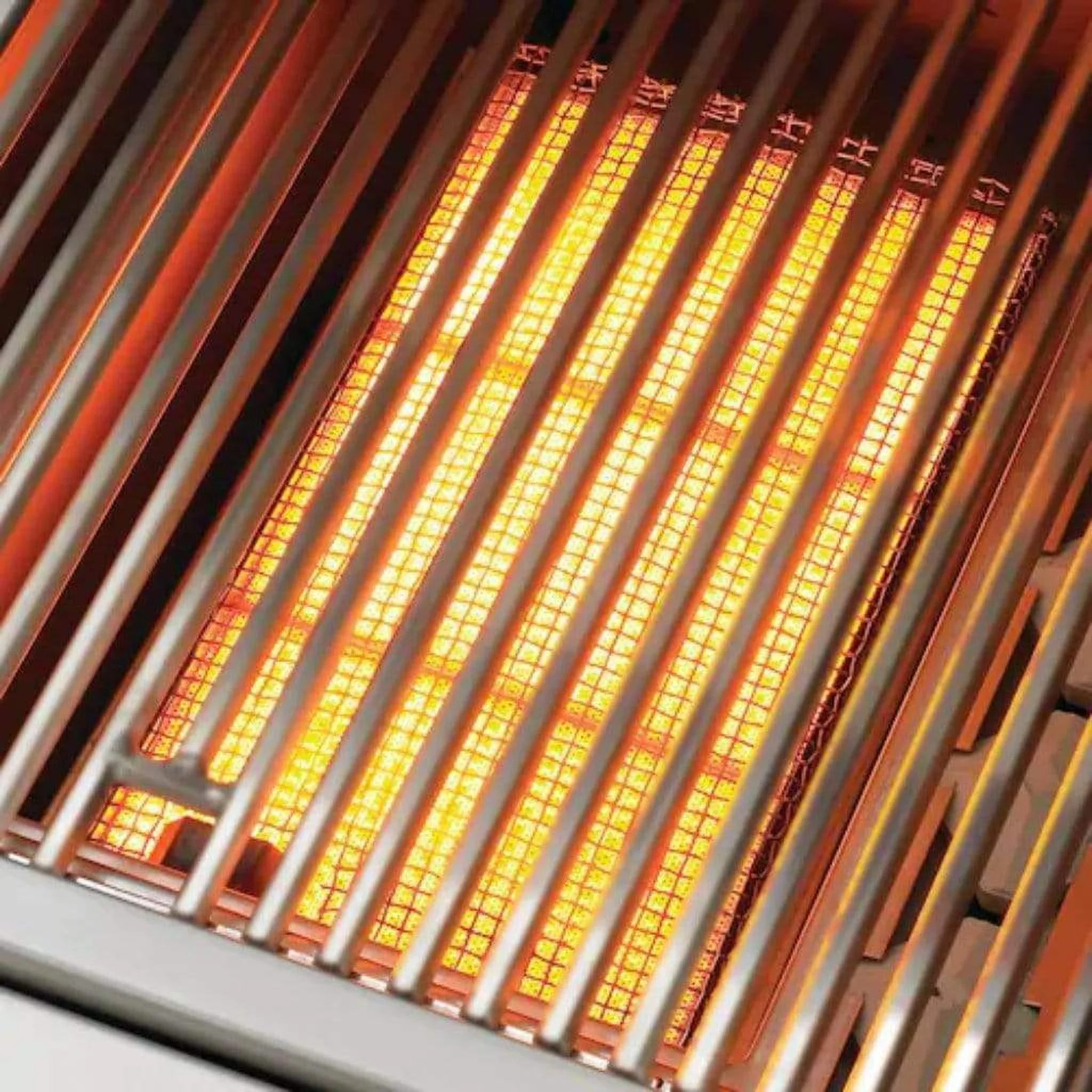

- Infrared Burner (Left Side) – Ideal for searing steaks or achieving high temperatures quickly.
Warranty Coverage
- Lifetime Warranty – Cast stainless steel burners, stainless steel cooking grids, and stainless steel housing.
- 15-Year Warranty – Brass valves, inner liners, manifold assemblies, and backburner assemblies (excluding ignition parts).
- 5-Year Warranty – Flavor grids, infrared burners, and charcoal stainless steel grills.
- 3-Year Warranty – Side burners and additional Fire Magic grill components (excluding electronic parts).
- 1-Year Warranty – Ignition systems (except batteries), electronic components, and accessories.
