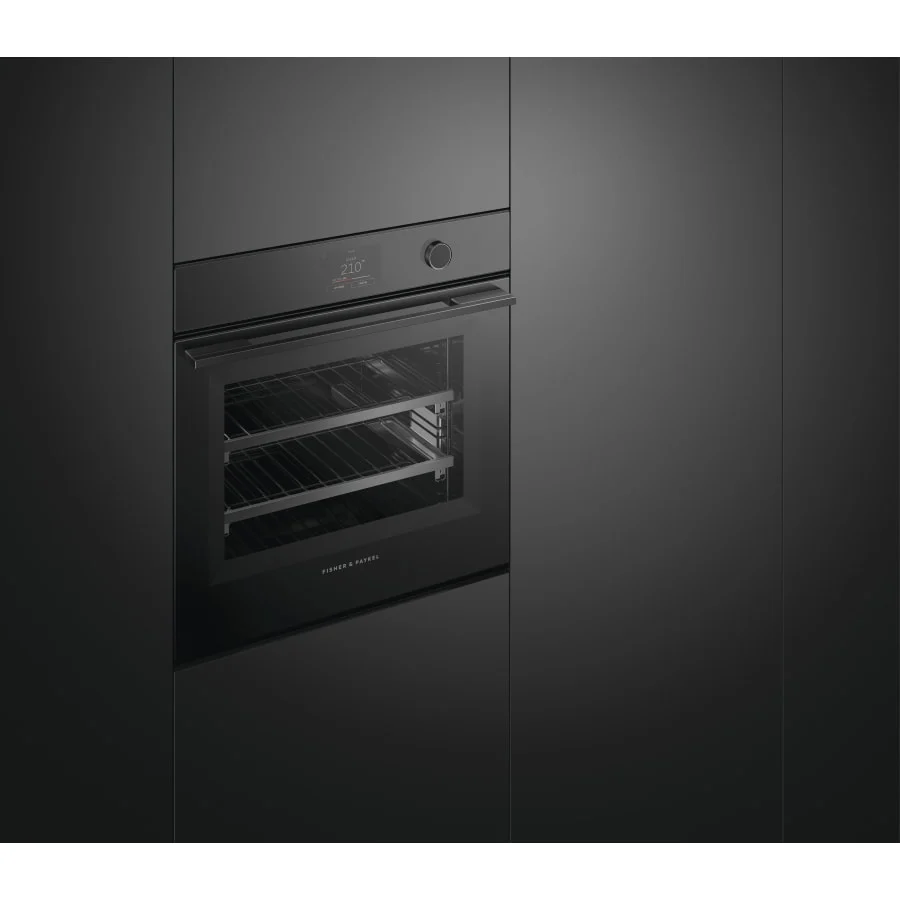

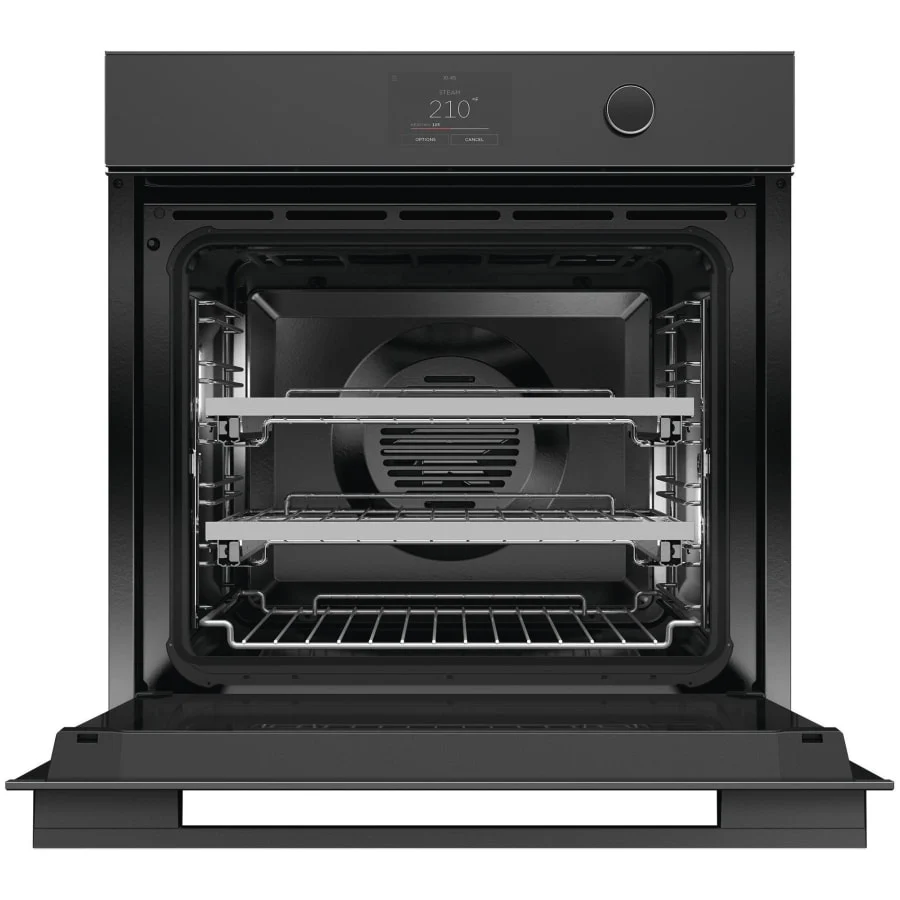

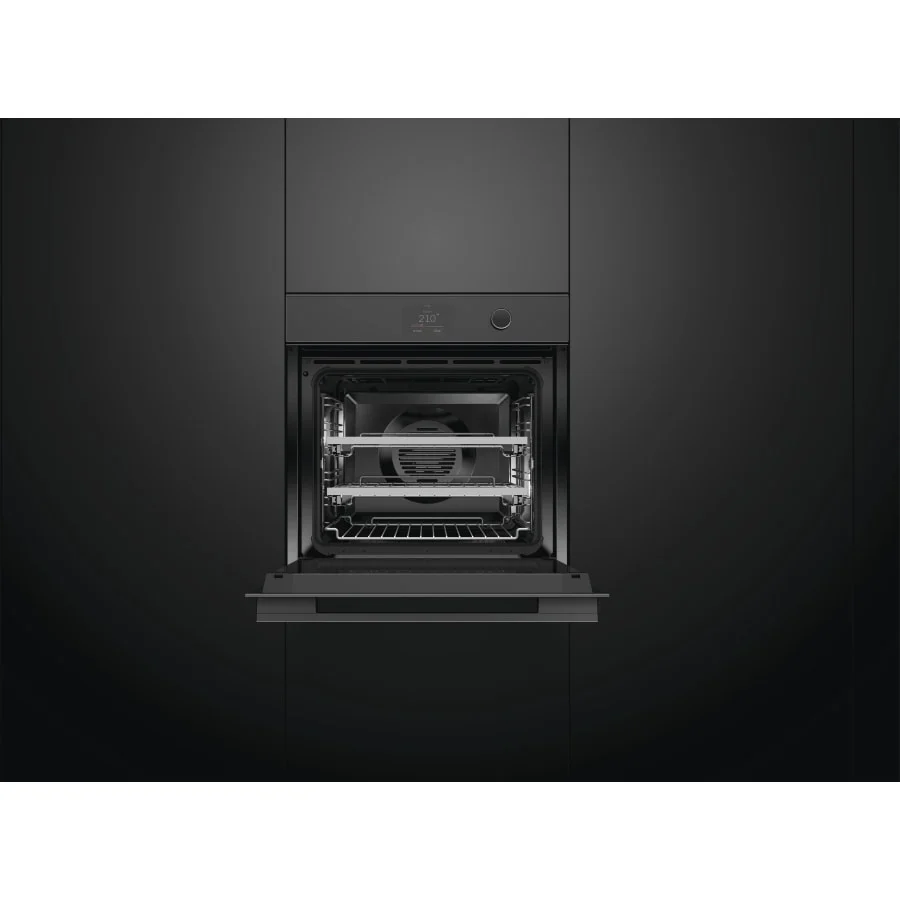

Fisher & Paykel 24" Series 11 Minimal Combi-Steam Oven

Upgrade your kitchen with the Fisher & Paykel 24" Series 11 Minimal Combi-Steam Oven, designed to deliver exceptional cooking precision and modern minimalist style. Combining convection heat with advanced steam technology, this built-in oven allows you to cook with dry heat, steam, or a combination of both for superior results. Steam cooking helps preserve nutrients, flavor, and moisture, making it ideal for preparing vegetables, seafood, baked goods, and perfectly tender meats.

The intuitive 5-inch touchscreen and illuminated dial provide guided cooking by ingredient, recipe, or function, making it easy to achieve professional results at home. With 24 cooking functions including Air Fry, Sous Vide, Steam Regenerate, and True Aero convection, this versatile oven adapts to a wide range of cooking techniques. Designed in sleek black glass to integrate seamlessly with contemporary cabinetry, it pairs beautifully with other minimal-style appliances for a refined, cohesive kitchen design.

Features

• Combination Steam Cooking – Use steam-only, convection-only, or combi-steam cooking modes.

• 24 Cooking Functions – Includes Air Fry, Sous Vide, Roast, Bake, Pizza Bake, and Steam Regenerate.

• Large 5" Touchscreen Interface – Guided cooking by food type, recipe, or cooking method.

• AeroTech™ Convection System – Circulates heat evenly for consistent cooking results.

• ActiveVent™ Technology – Automatically manages moisture levels during cooking.

• Steam Regenerate & Crisp Regenerate – Refresh leftovers while maintaining texture and flavor.

• Smart Appliance Connectivity – Compatible with smart home integration.

• Soft-Close Door Design – Quiet and smooth operation.

• Minimal Style Design – Sleek black glass finish designed to integrate flush with cabinetry.

• Steam Clean & Descale Cycle – Helps maintain the oven with minimal effort.

Specifications

Specification	Details
Brand	Fisher & Paykel
Model	OS24SMTDB1
Series	Series 11 Minimal
Product Type	Built-In Combi-Steam Oven
Fuel Type	Electric
Finish	Black Glass
Nominal Width	24 Inch
Total Capacity	3 cu ft
Usable Capacity	2.5 cu ft
Shelf Positions	6
Number of Functions	24
Temperature Range	95°F – 445°F
Convection System	AeroTech™
Ventilation	ActiveVent™
Control Type	Touchscreen with illuminated dial
Cleaning	Steam Clean, Descale Cycle
Width	23 7/16"
Height	23 9/16"
Depth	22 1/4"
Voltage	208–240 V
Amperage	16.6–19.4 A
Frequency	60 Hz

Downloads

• Planning Guide
• Installation Guide
• Quick Reference guide
• User Guide
