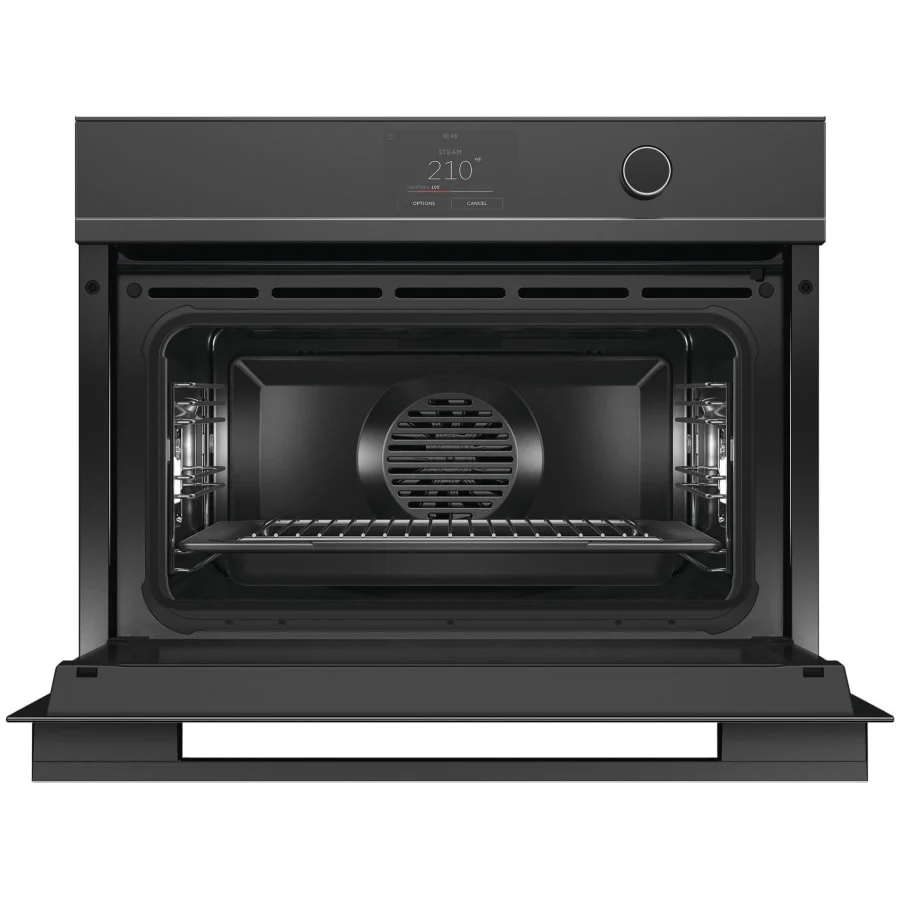

Fisher & Paykel 24" Series 9 Minimal Compact Combi-Steam Oven

The Fisher & Paykel 24" Series 9 Minimal Compact Combi-Steam Oven delivers advanced cooking performance in a sleek, space-saving design. Finished in elegant black glass, this built-in oven integrates seamlessly into modern minimalist kitchens. Combining steam and convection cooking, it allows you to preserve nutrients, moisture, and flavor while achieving crisp, evenly cooked results. The intuitive touchscreen interface with guided cooking makes it easy to select the ideal settings by food type, function, or recipe.

Designed for versatility, this compact oven features 23 cooking functions including Steam, Sous Vide, Air Fry, and Crisp Regenerate. AeroTech™ technology ensures even heat distribution across multiple shelves, while the ActiveVent™ system automatically controls moisture levels for optimal cooking conditions. With convenient steam cleaning, descaling cycles, and a removable water tank, this combi-steam oven offers both high performance and easy maintenance for everyday cooking.

Features

• 23 Cooking Functions – Includes Steam, Sous Vide, Air Fry, Bake, Roast, and Crisp Regenerate

• Combination Steam & Convection Cooking – Retains nutrients, moisture, and natural flavor

• Minimal Black Glass Design – Sleek, handle-free aesthetic for modern kitchens

• Guided Touchscreen Interface – Cook by recipe, ingredient, or function with ease

• AeroTech™ Heat Circulation – Even airflow ensures consistent results

• ActiveVent™ Moisture Control – Automatically balances humidity for better cooking performance

• Steam Regenerate Function – Refresh leftovers while maintaining texture and flavor

• Steam Clean & Descale Cycles – Easy maintenance with natural cleaning system

• Compact Built-In Design – Ideal for flexible installation or pairing with companion appliances

• Soft-Close Door – Smooth, quiet operation for premium usability

Specifications

Specification	Details
Brand	Fisher & Paykel
Model	OS24NDTDB1
Series	Series 9 Minimal
Product Type	Compact Combi-Steam Oven
Installation	Built-In
Fuel Type	Electric
Finish	Black Glass
Nominal Width	24 Inch
Total Capacity	1.9 cu. ft.
Usable Capacity	1.6 cu. ft.
Shelf Positions	4
Number of Functions	23
Water Tank Capacity	50.7 oz
Temperature Range	95°F – 445°F
Convection System	AeroTech™
Ventilation	ActiveVent™
Cleaning	Steam clean, descale cycle, drying cycle
Control Type	Touchscreen
Width	23 5/8"
Height	18"
Depth	22 1/4"
Voltage	208–240 V
Amperage	16.6 – 19.4 A
Frequency	60 Hz

Downloads

• Planning Guide
• Installation Guide
• Quick Reference guide
• User Guide
