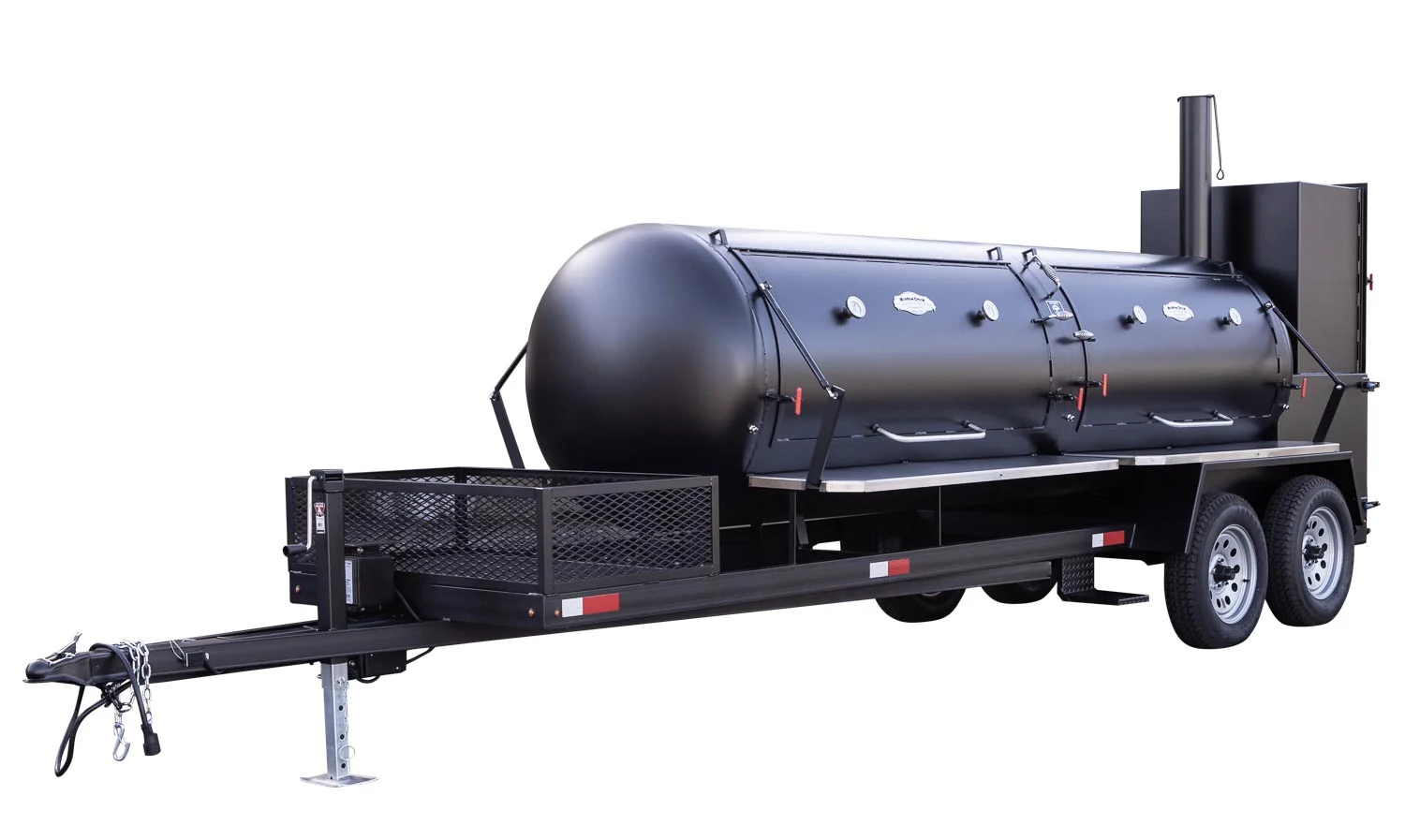

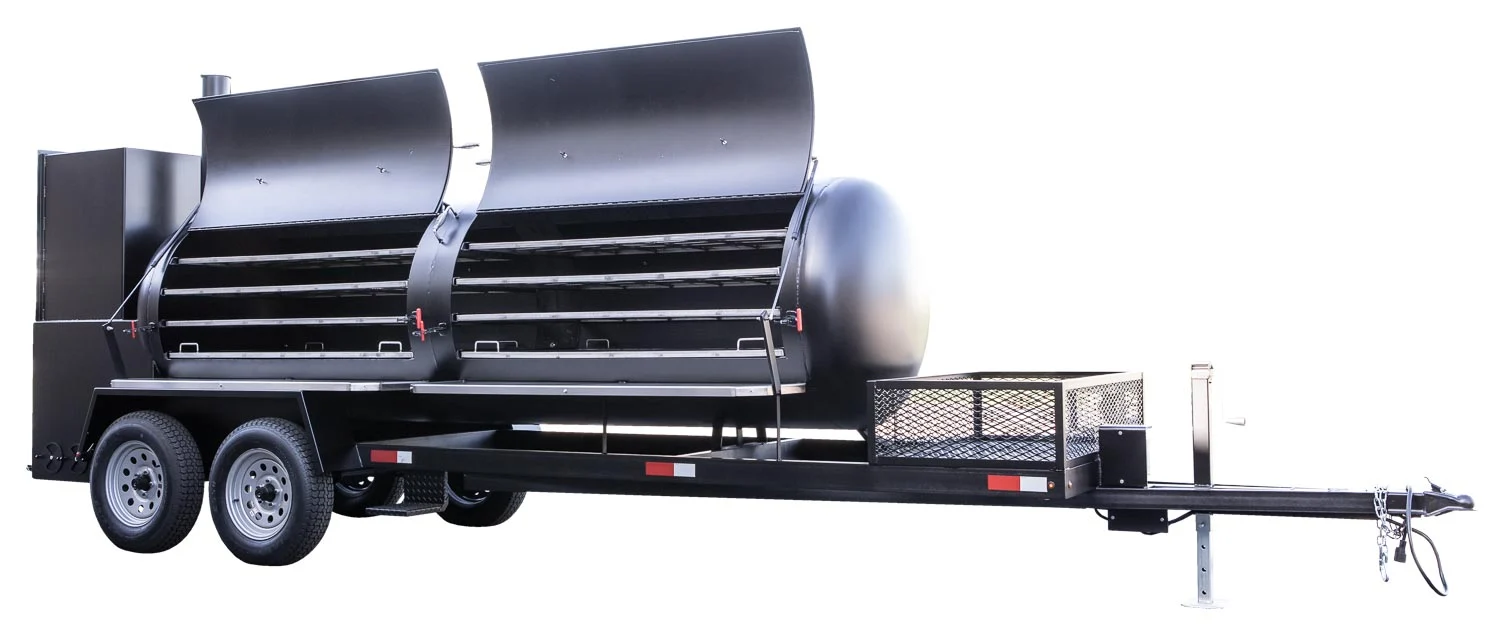

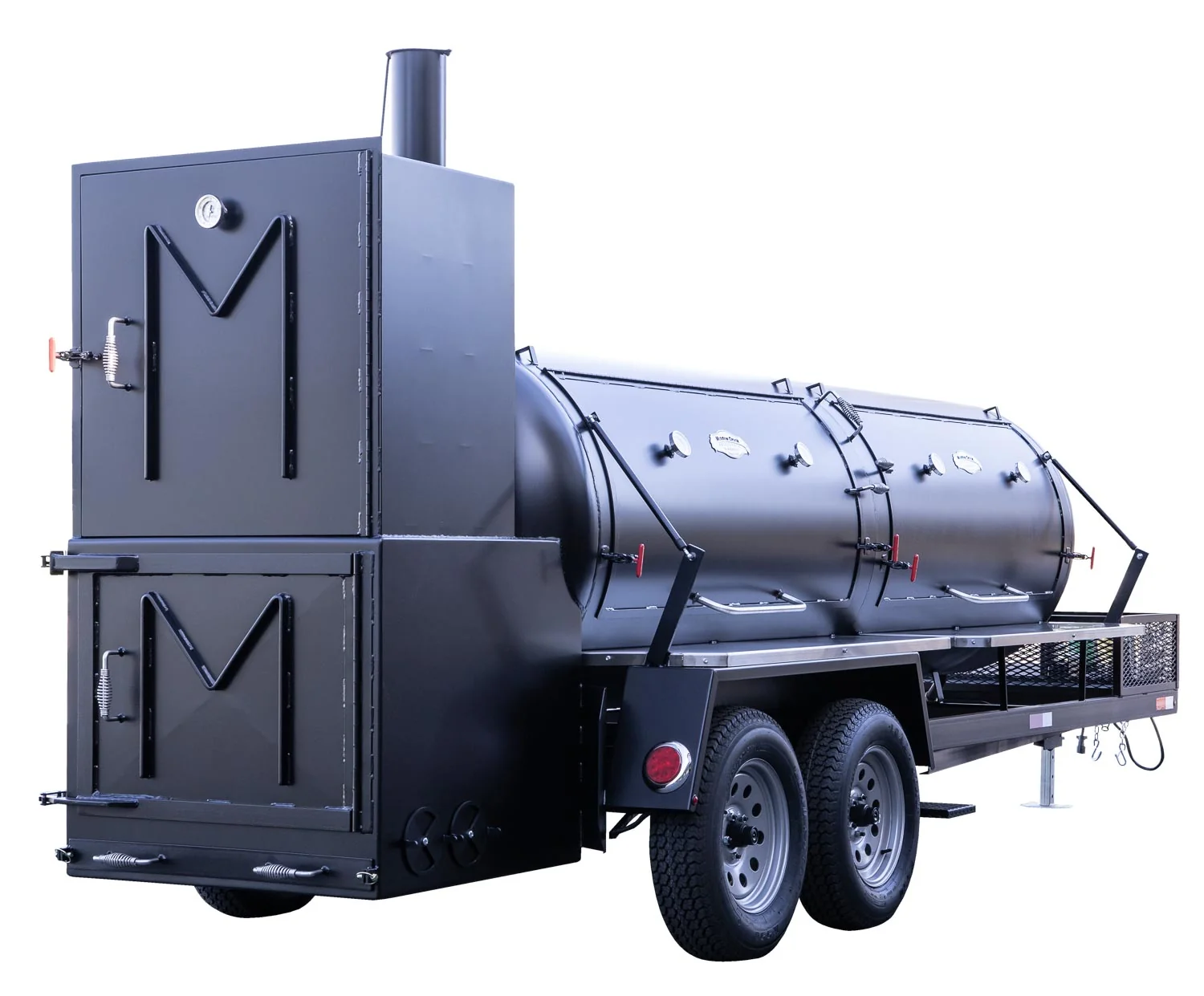

Meadow Creek TS1000 BBQ Smoker Trailer

The Meadow Creek TS1000 BBQ Smoker Trailer is the ultimate commercial-grade offset smoker built for massive, high-volume BBQ operations. Crafted from a 1,000-gallon reverse flow tank, this powerhouse delivers over 130 square feet of cooking space with eight sliding stainless steel grates. Capable of handling up to 180 pork butts or 140 briskets, it’s perfect for large caterers, BBQ restaurants, and major events that demand consistent, low and slow smoking with authentic wood-fired flavor.

Engineered for performance and reliability, the TS1000 smoker trailer includes a spacious warming box that holds six full-size pans and all the premium features of the TS series. Its rugged trailer design features a heavy-duty tandem axle with brakes, 15″ highway wheels, LED lighting, and a strong 4-inch channel frame for safe transport. Built for professionals, this Meadow Creek BBQ smoker delivers unmatched capacity, durability, and efficiency.

Features

• Commercial BBQ Smoker Trailer: Heavy-duty, competition-ready smoker trailer designed for professional pitmasters, catering, and large-scale outdoor cooking.
• Reverse-Flow Smoker Technology: Ensures even heat distribution and consistent smoke circulation for perfectly cooked BBQ every time.
• 8 Stainless Steel Slide-Out Cooking Grates: Food-grade T304 stainless steel racks provide maximum cooking capacity, durability, and easy cleaning.

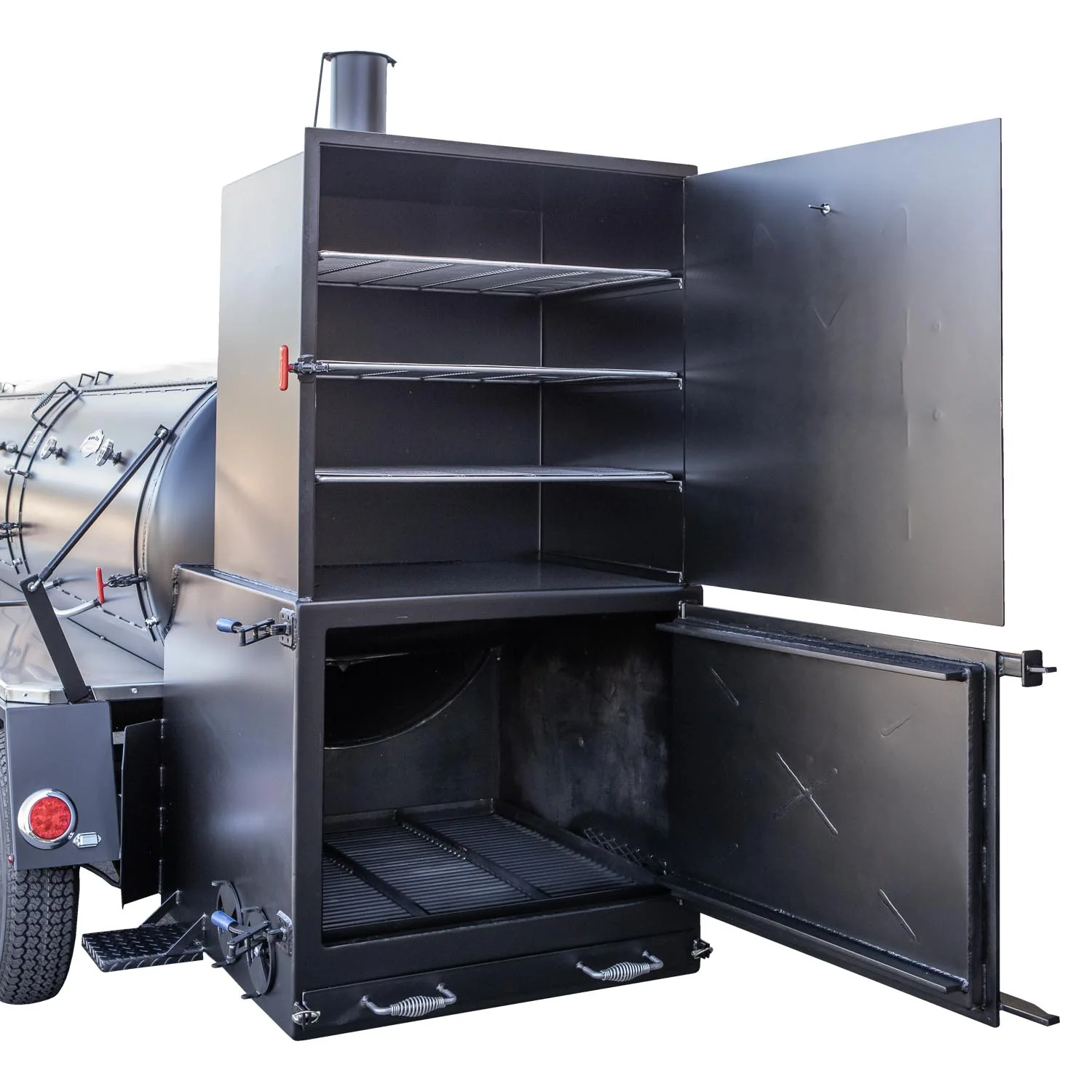

• Integrated Warming Box with Multiple Shelves: Keeps food hot and ready to serve while maximizing cooking efficiency during large events.
• Built-In Water Pan System: Enhances moisture retention for tender, flavorful meats during low-and-slow smoking.
• Heavy-Duty Steel Construction: Crafted from 3/16″ steel tanks and 1/4″ firebox steel for superior heat retention and long-lasting performance.

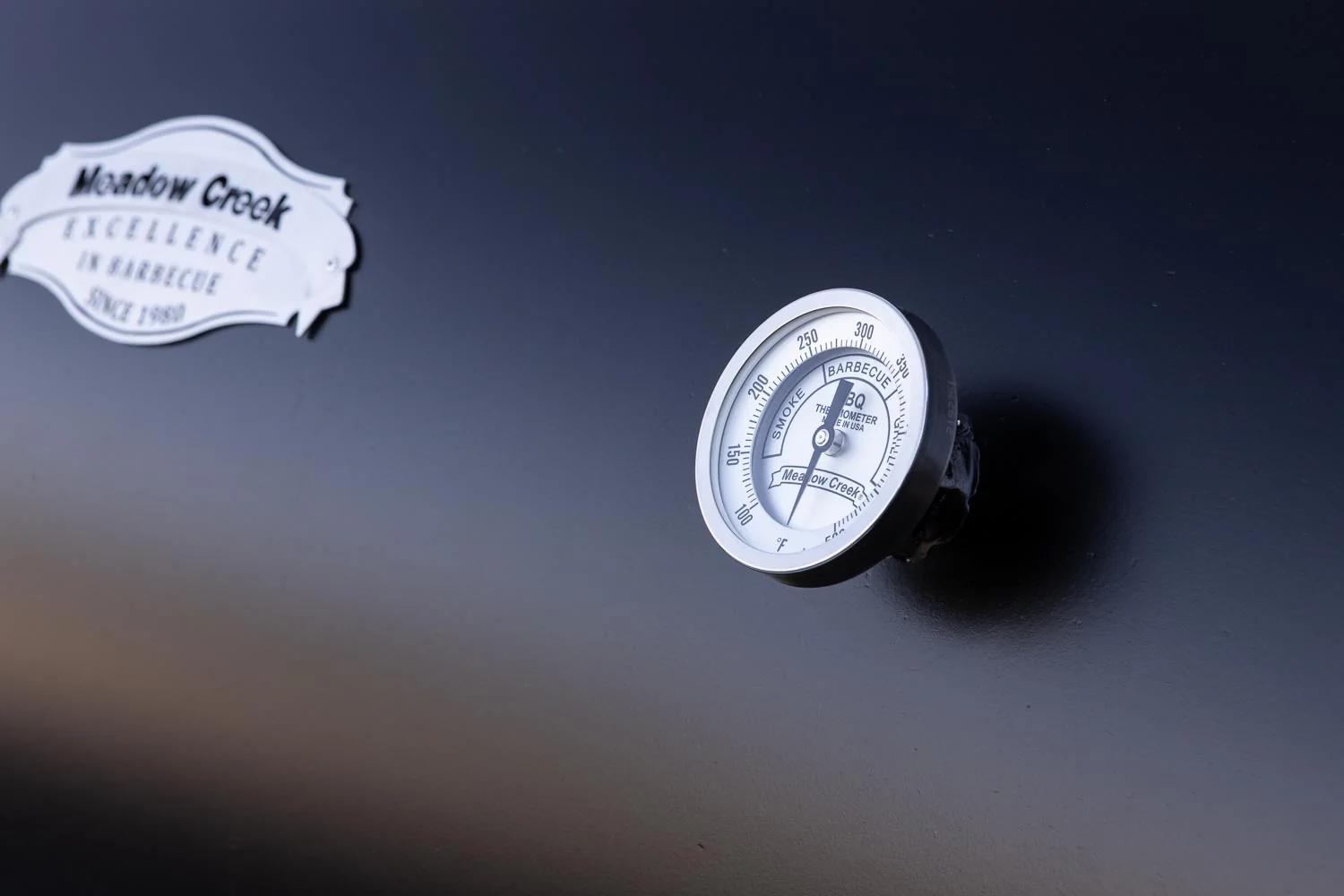

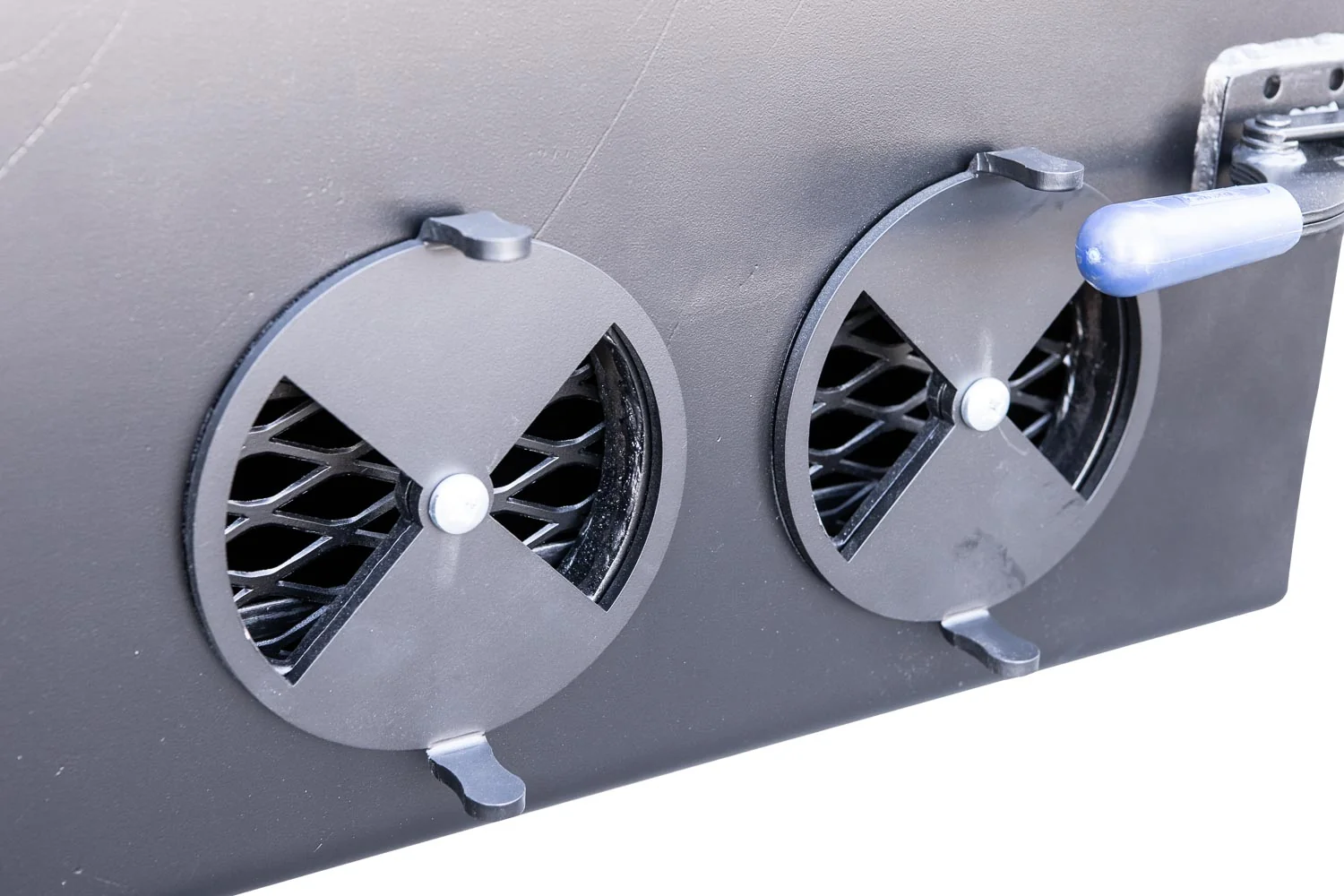

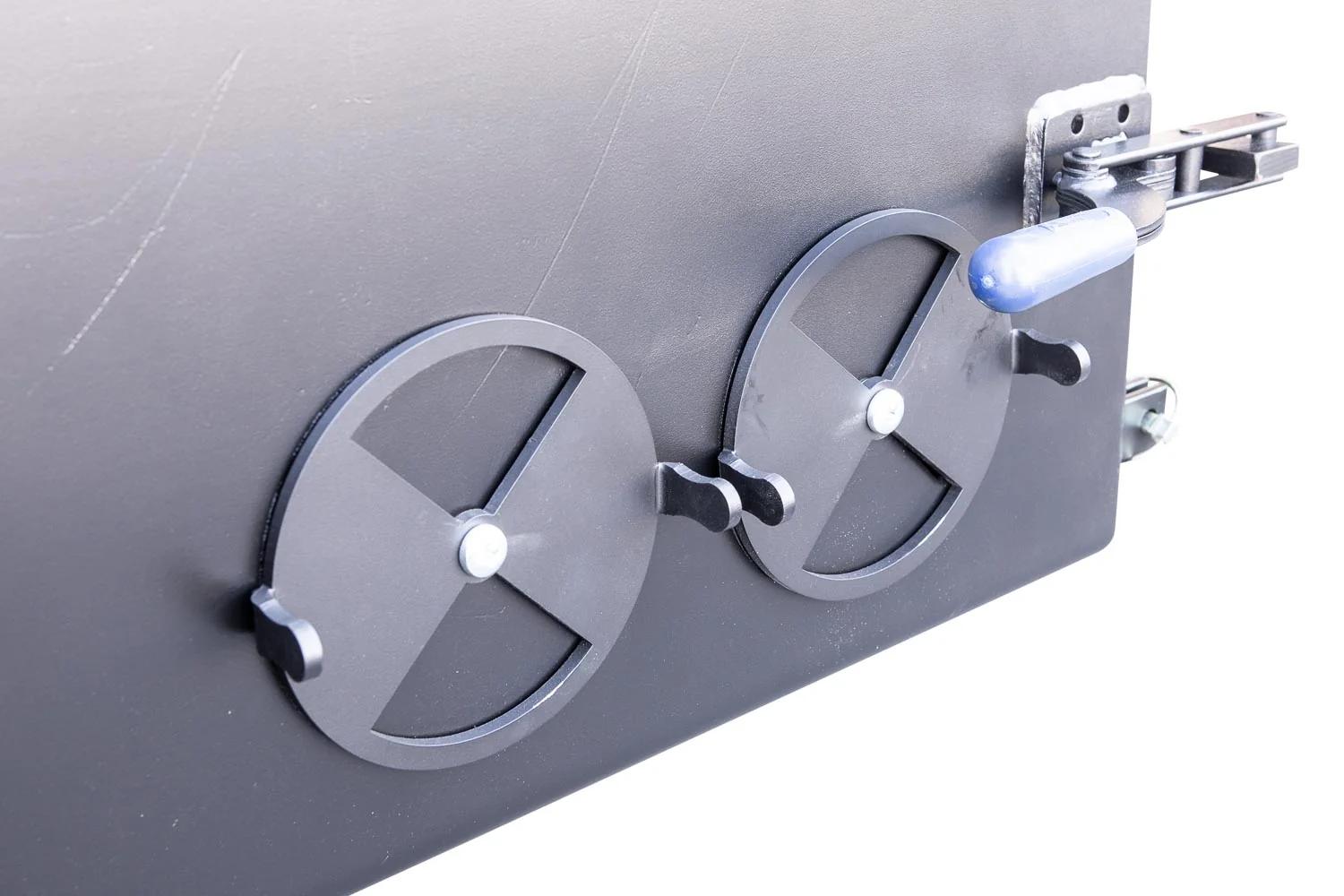

• Precision Temperature Control: Includes a stainless steel calibratable thermometer and adjustable airflow system for accurate heat management.

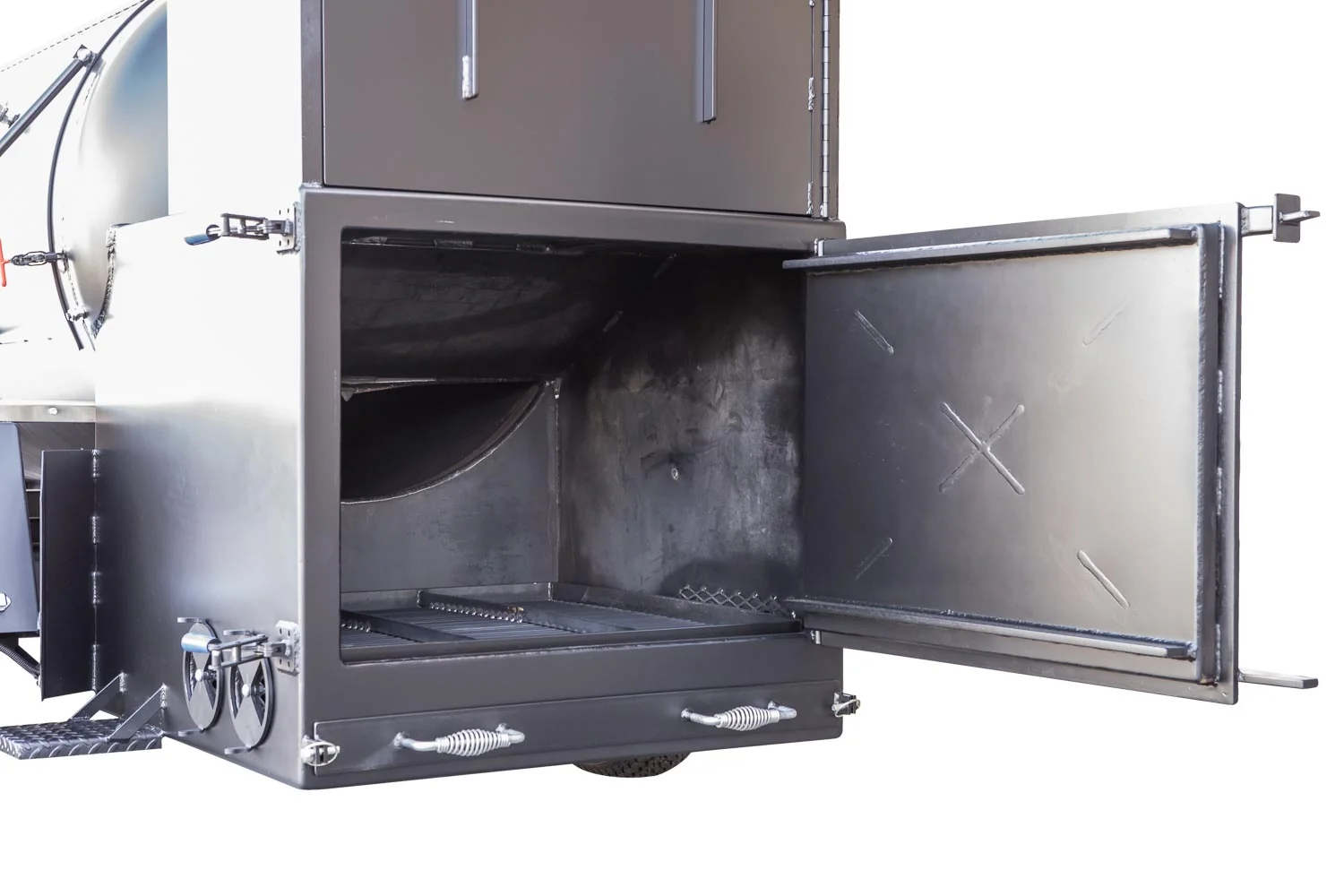

• Slide-Out Ash Pan & Firebox Grate: Simplifies ash removal and fuel management for efficient operation.

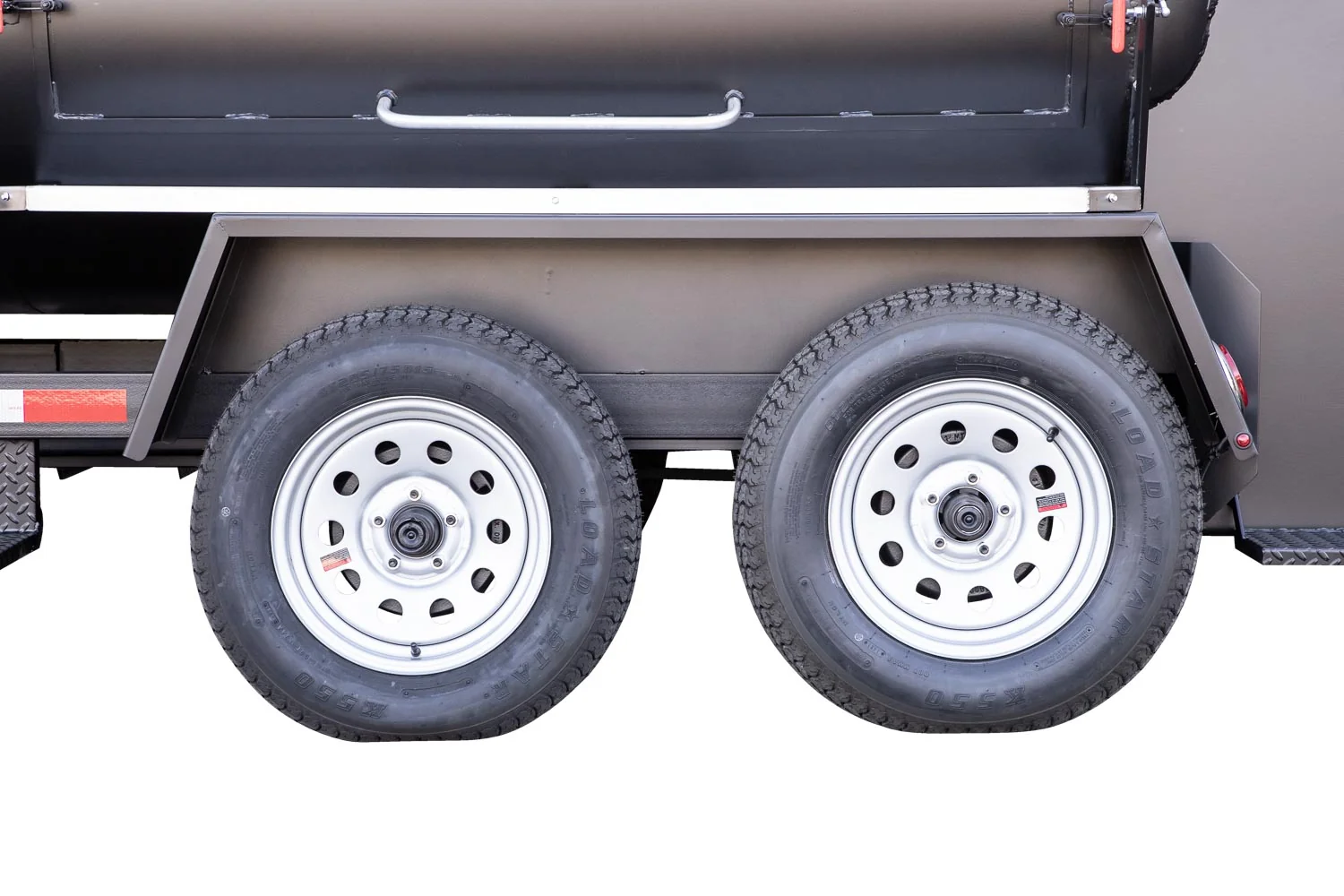

• Durable Trailer with Tandem Axle & Brakes: Designed for safe transport with a robust channel frame, road-ready tires, and braking system.

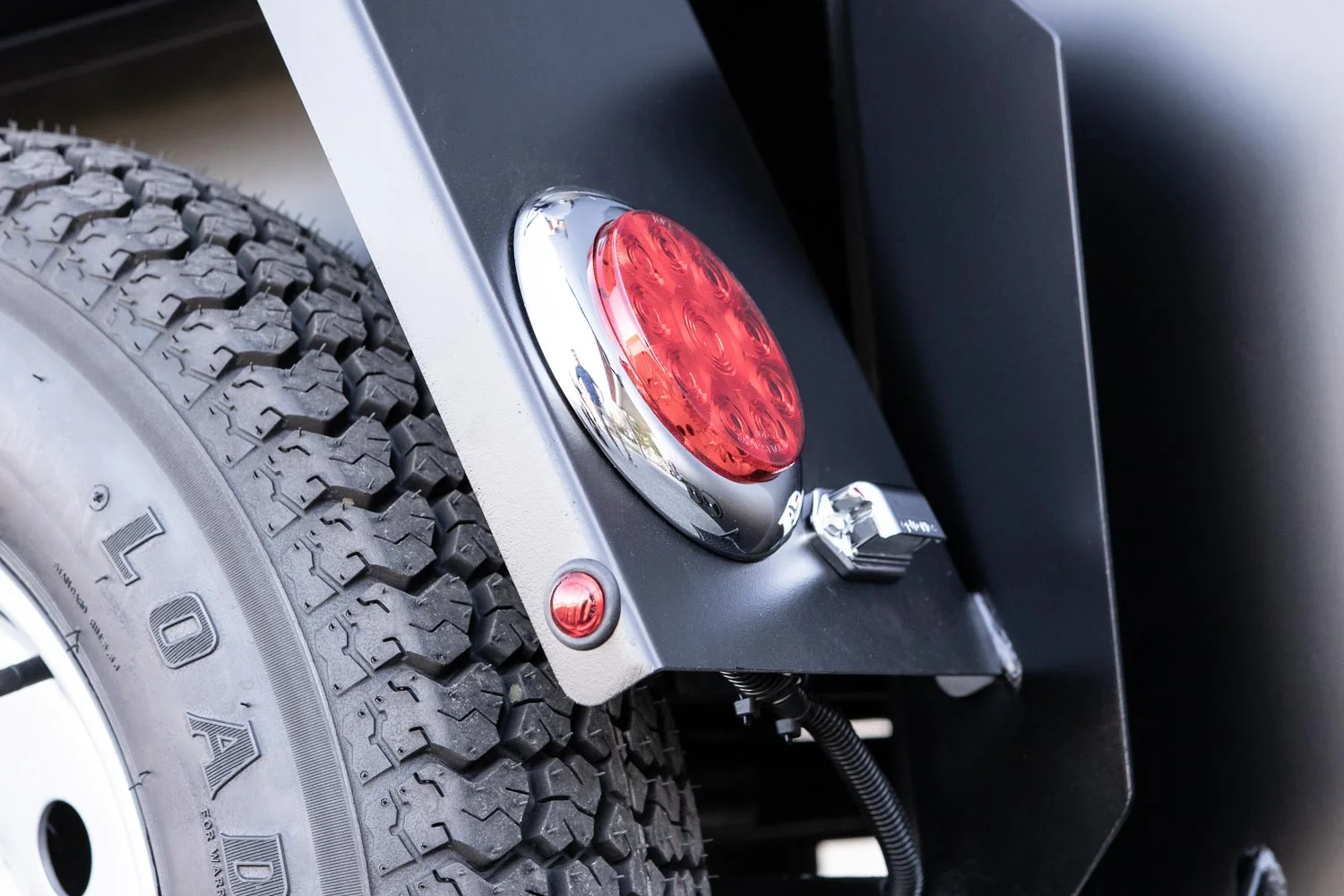

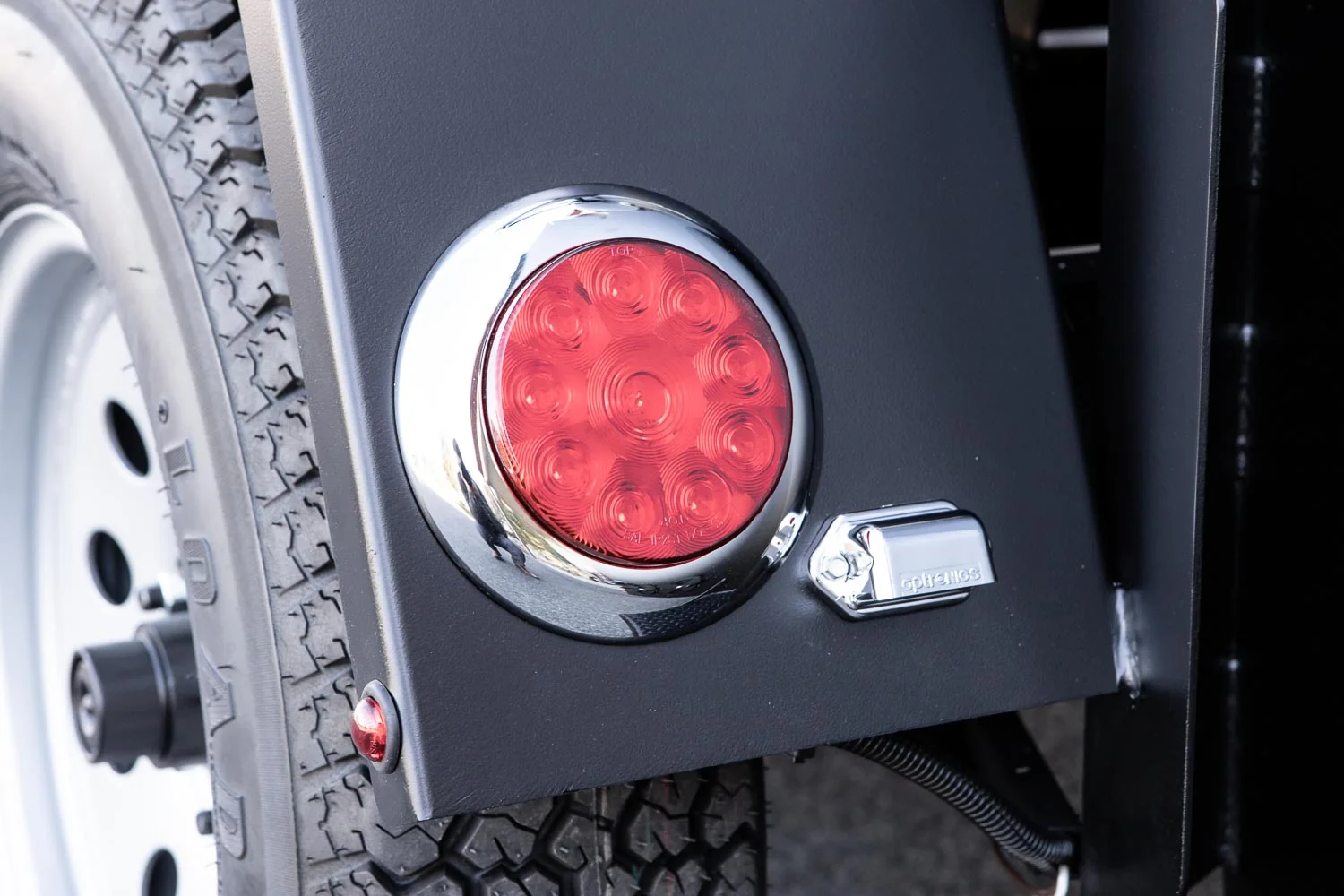

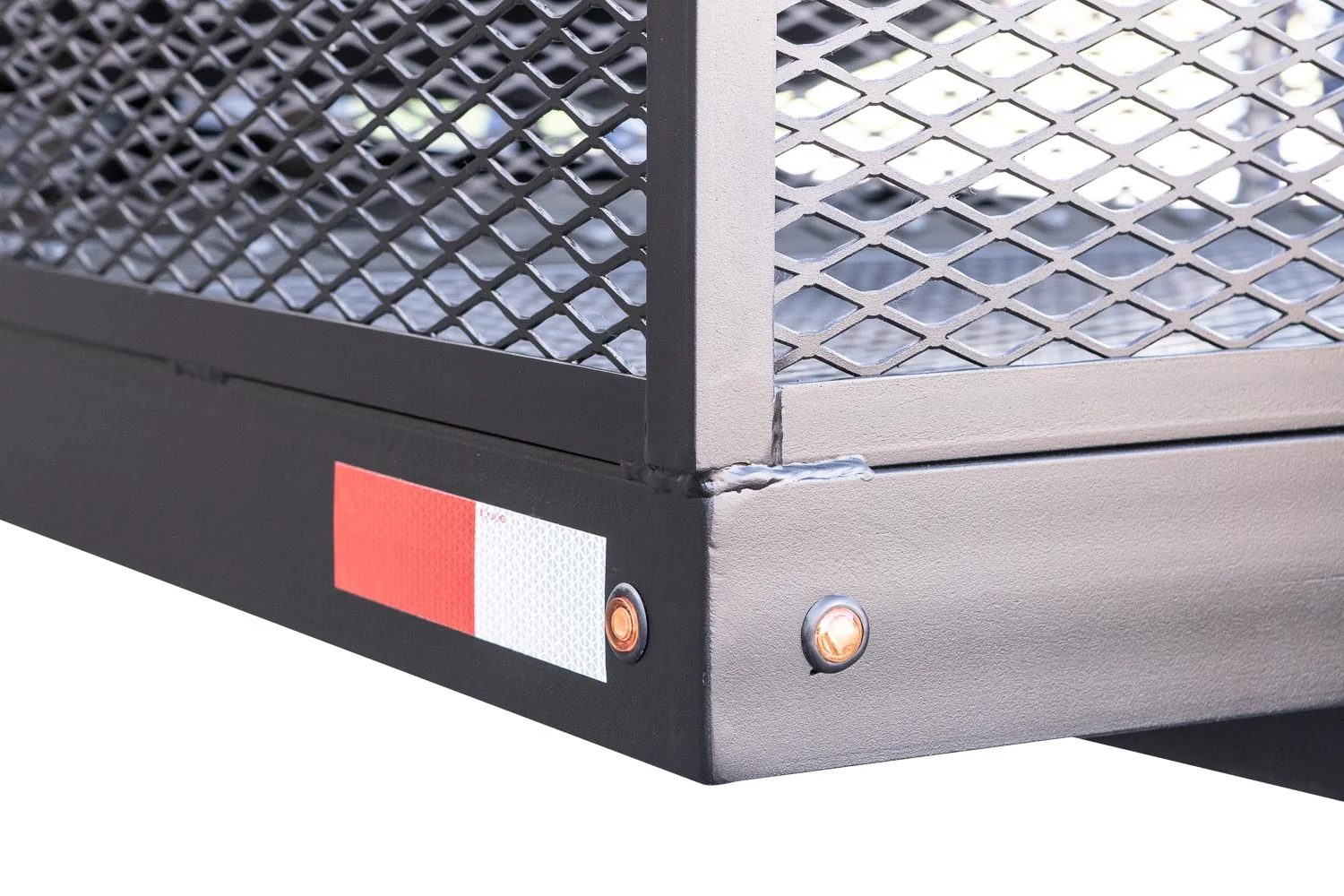

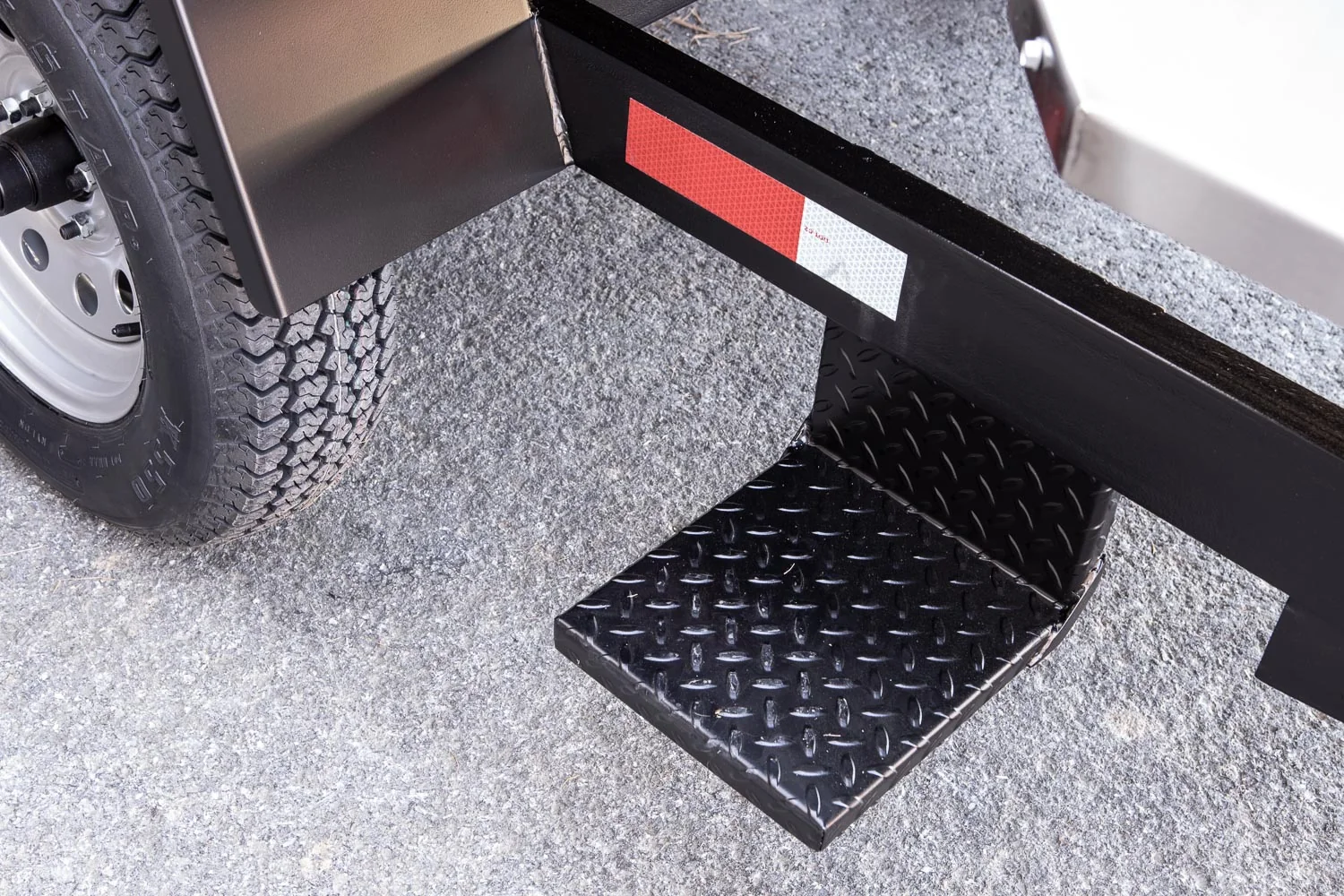

• DOT-Compliant Trailer Lighting & Safety Features: Equipped with LED lights, reflector strips, safety chains, and VIN plate for road legality.
• Spacious Wood Storage Box: Convenient onboard storage for firewood and accessories.
• Expanded Metal Side Shelves: Four exterior shelves provide ample prep space for grilling and food handling.

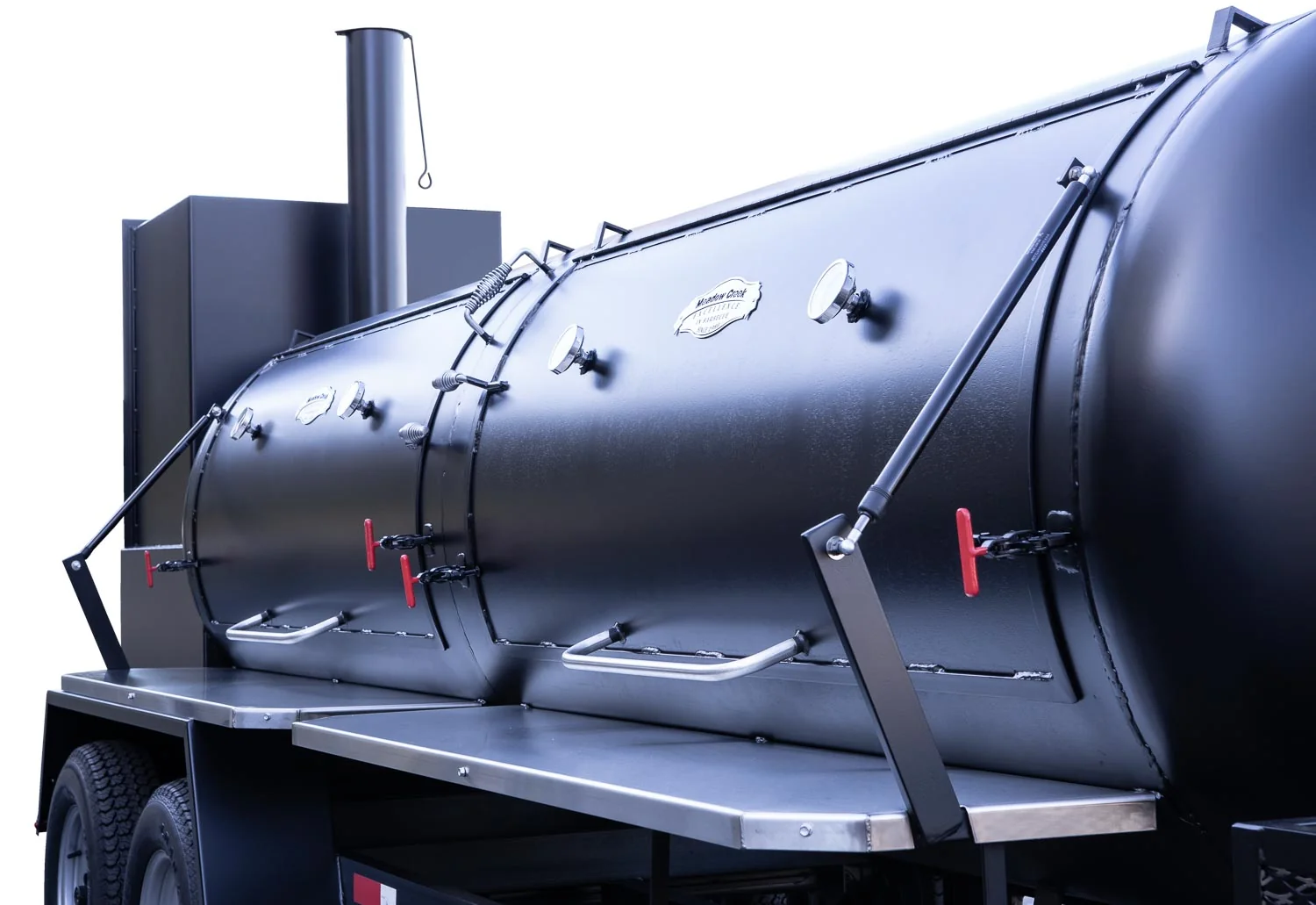

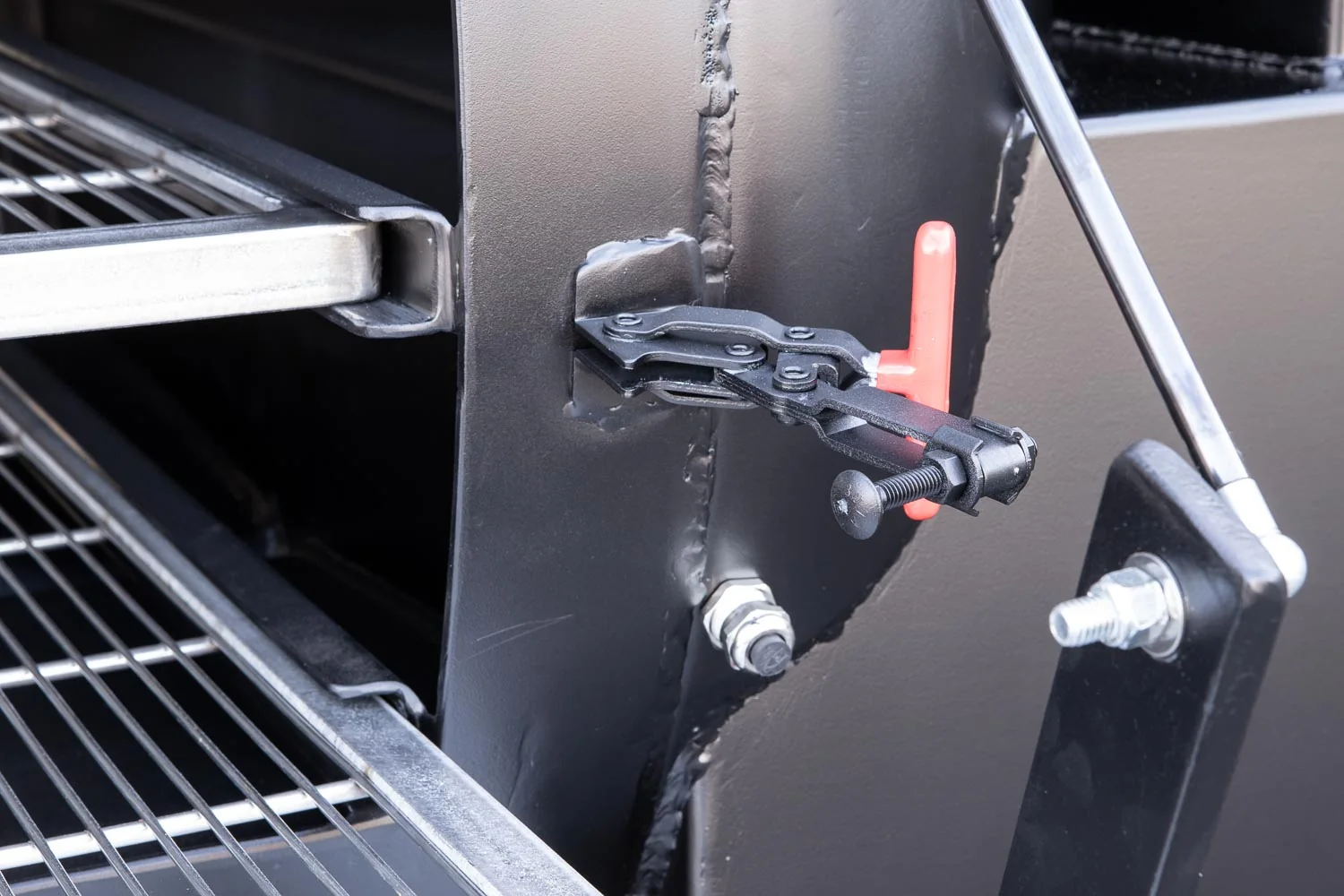

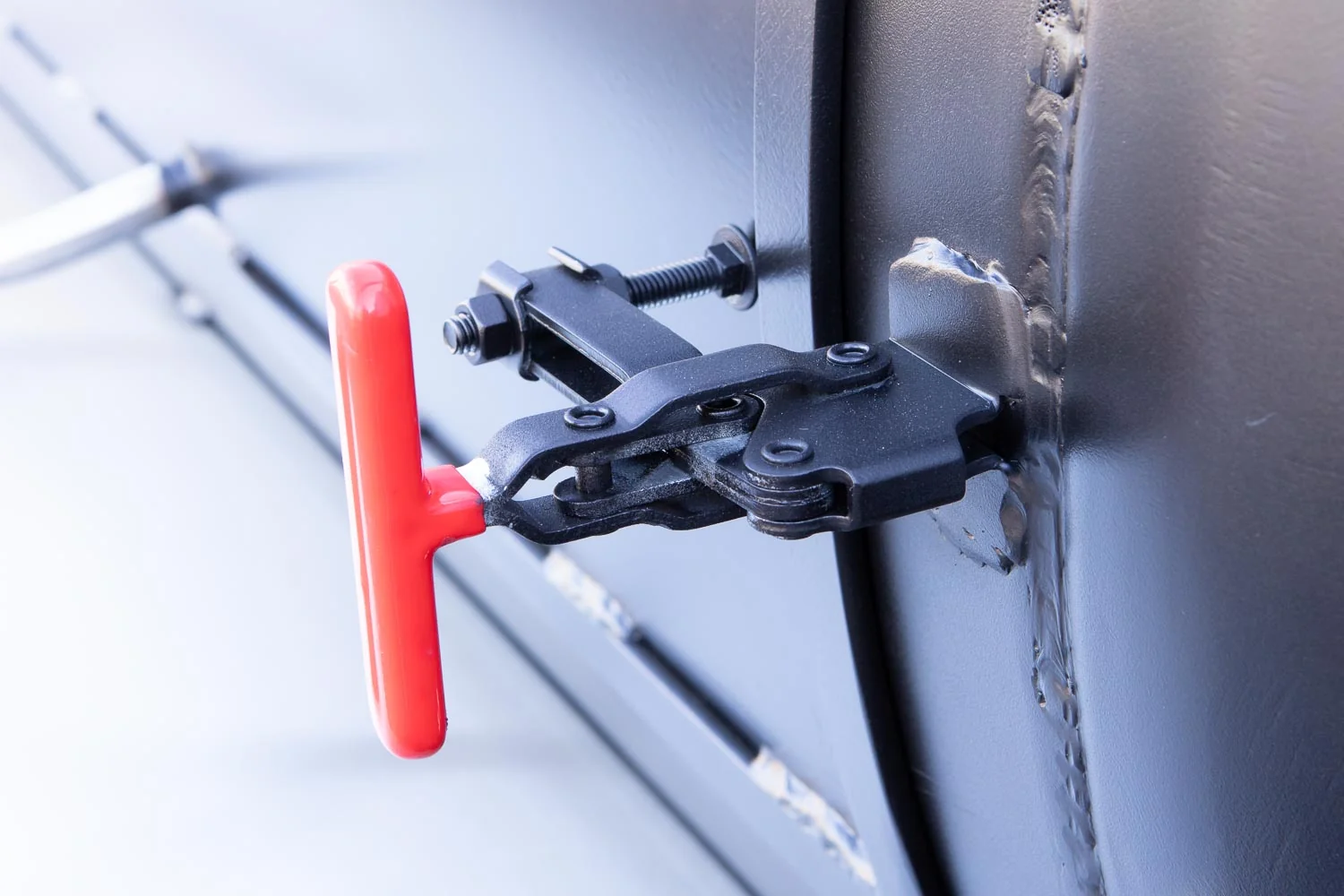

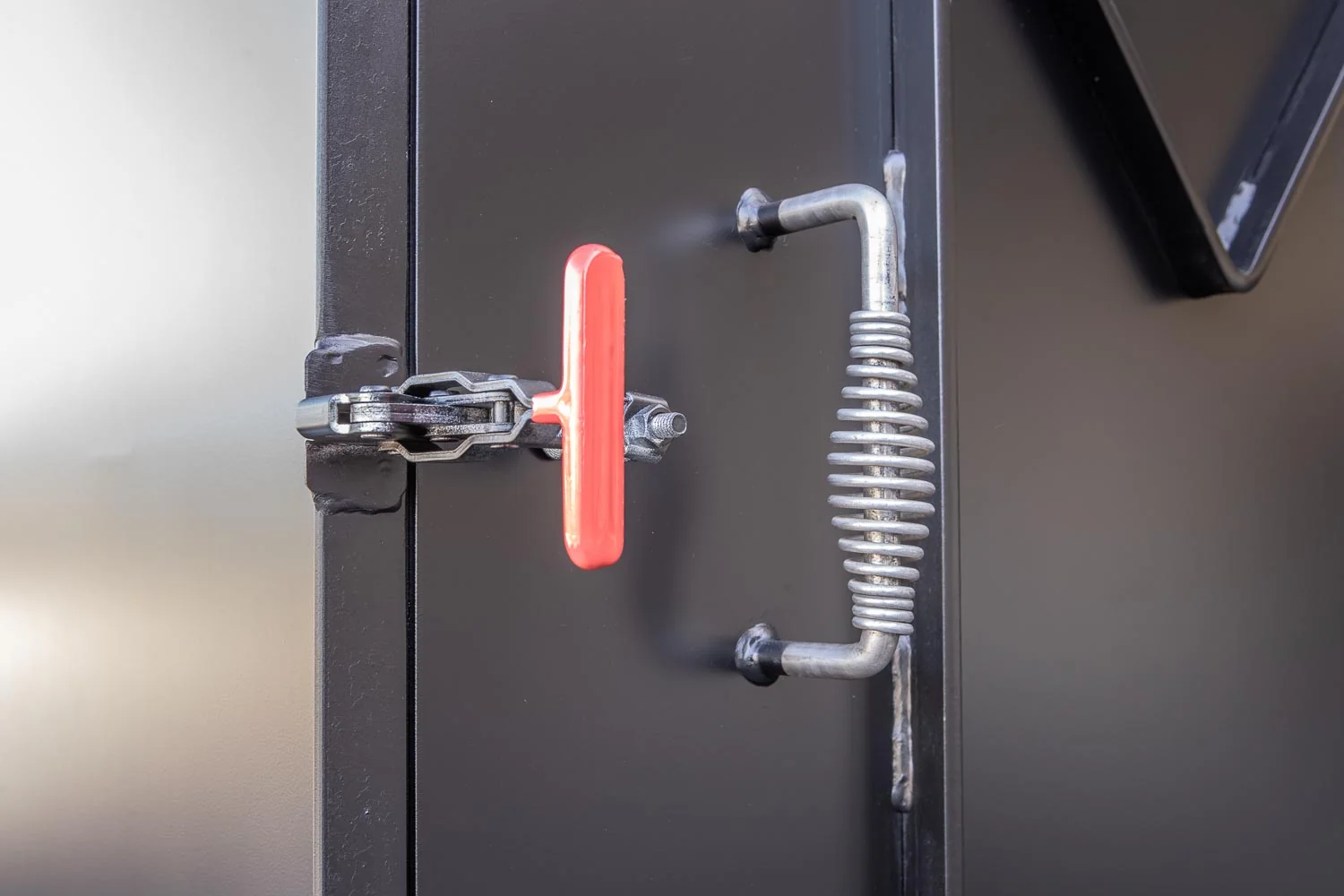

• Gas Spring-Assisted Doors & Positive-Lock Latches: Ensures smooth operation, secure sealing, and improved heat retention.
• Heat Baffle Protection System: Shields wheels from firebox heat for enhanced durability and safety.
• Professional-Grade Mobility & Build: Includes a 2″ ball hitch, heavy-duty wheel jack, and easy-to-lube bearings for reliable towing and performance.

Specifications

Feature	Details
Overall Dimensions	278” L x 72” W x 97” H
Cooking Area	130.81 sq. ft. (18,837 sq. in.)
Grate Dimensions	2 – 33” x 63”, 4 – 39.75” x 63”, 2 – 37” x 63”
Space Above Top Grate	5.5”
Space Between Grates	5.5”
Grate Style	Wire Grid with 1/2” Spacing
Tank Dimensions	41” x 168” (1000-gallon)
Metal Thickness on Tank	0.25”
Fire Box Dimensions	38.5” Cube (Inside: 38” x 38” x 34”)
Metal Thickness on Fire Box	0.25”
Warming Box Dimensions	26” x 34.25” (Inside)
Warming Box Grate Dimensions	26” x 34.25”
Space Between Grates in Warmer	8.5”
Net Weight	5,000 lbs.
Capacity of Pork Butts	178–182
Capacity of Baby Back Ribs	140–165
Capacity of Spare Ribs	100–110
Capacity of Whole Briskets	130–140
Capacity of Whole Chickens	280–290

Resources

• Specs Sheet
• Owners Manual
